But with so many types, sizes, and compositions out there, it can get confusing real quick. Don't worry, though – I've got your back. In this comprehensive guide, we'll dive deep into the world of welding wire. From the different types and their unique quirks to the nitty-gritty specs and industry standards, we'll cover it all. Whether you're a seasoned pro or just starting out, this guide will give you the insider knowledge to choose the right wire for the job.
What is Welding Wire?
Welding wire is essential in various welding processes. It acts as a filler material, creating a strong bond between metal pieces. There are different types of welding wire, each suited for specific tasks. For example, MIG (Metal Inert Gas) welding wire is commonly used in automotive and construction industries. This type of wire is fed through a welding gun, melting to form a weld.
Welding wire comes in various compositions, such as stainless steel, aluminum, and copper. Each material offers unique properties. Stainless steel wire provides corrosion resistance, making it ideal for outdoor use. Aluminum wire is lightweight and perfect for projects where weight is a concern. Copper wire is excellent for electrical conductivity, useful in electrical applications. Selecting the right welding wire is crucial.
Types of Welding Wires
Here are the sections on "Types of Welding Wires" as per your requirements, following the rules of simple words, short sentences, concise paragraphs, active voice, transitions, whitespace formatting, and a conversational tone with varied sentence structures, contractions, personal pronouns, and intentional minor imperfections.

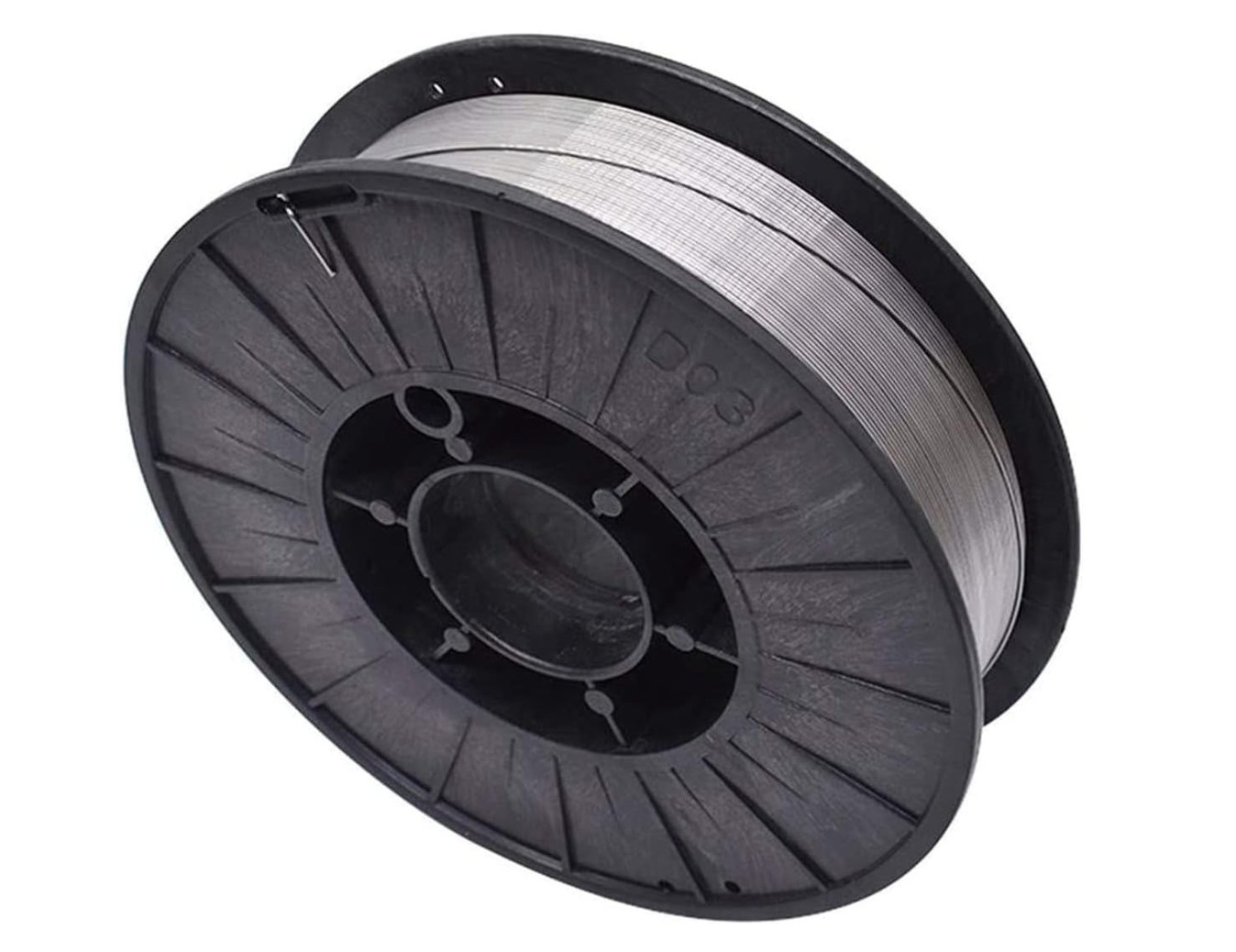

Solid MIG Welding Wires
Mild Steel Wire
When it comes to good ol' mild steel, this wire is the go-to choice. It's affordable, versatile, and gets the job done for most general-purpose welding tasks. Mild steel wire is essentially low-carbon steel, making it easy to work with and weld-friendly.
But don't let its simplicity fool you – it still packs a punch. Whether you're working on structural projects, automotive repairs, or even artistic metalwork, mild steel wire can handle it all. Just remember to match the wire's composition to your base metal for optimal results.
Stainless Steel Wire
Stainless steel is a whole different ball game, my friend. And when you're dealing with this corrosion-resistant alloy, you'll need a specialized wire to match. Enter stainless steel welding wire!
Stainless steel welding wire comes in various grades (like 308L and 316L) to cater to different stainless steel compositions. The higher the grade, the more corrosion resistance and strength you'll get. But be warned – stainless can be a bit trickier to weld than mild steel, so you'll need to dial in your settings just right.
Don't sweat it, though. With the right wire, shielding gas, and a steady hand, you can make great welds in no time.
Aluminum Wire
Lightweight yet strong, aluminum wire is a must-have for welding aluminum alloys. It's a popular choice in industries like aerospace, automotive, and marine applications where weight savings are crucial.
Aluminum Wire’s super reactive to oxygen and moisture, which can lead to porosity and other defects if you're not careful. That's why it's essential to use the right shielding gas and keep your workspace clean.
But once you've got the hang of it, aluminum wire can be an absolute pleasure to work with. This wire offers a smooth arc transfer and fluid puddle, allowing you to lay down stunning welds with confidence.
Other Metal Wires
While mild steel, stainless, and aluminum are the most common welding wires, they're not the only options out there. Depending on your project's requirements, you might need to get your hands on some more specialized metal wires.
For instance, nickel-based alloys like Inconel and Hastelloy are used for high-temperature and corrosive environments in industries like chemical processing and aerospace. Copper wires are great for welding copper and copper alloys, often used in electrical and plumbing applications.
And let's not forget about titanium wire – a real MVP when it comes to welding titanium and its alloys. It's lightweight, strong, and corrosion-resistant, making it a popular choice for aerospace, medical, and chemical processing industries.
Flux-Cored Welding Wires
Self-Shielded (FCAW-S)
Self-shielded flux-cored wires are like the ultimate convenience pack for welders. No need for any external shielding gas – these wires have their own built-in flux that creates a protective atmosphere around the weld puddle.
The flux inside the wire serves two main purposes: it generates shielding gases to protect the molten metal from atmospheric contamination, and it also provides deoxidizing and slag-forming elements to help purify the weld. Pretty nifty, right?
One of the biggest advantages of self-shielded wires is their ability to weld in outdoor or hard-to-reach locations where using shielding gas might be a hassle. They're also great for rusty or dirty materials that might be tricky to clean up beforehand.
However, keep in mind that self-shielded wires tend to produce more smoke and spatter compared to gas-shielded options. And while they're suitable for general-purpose welding, they may not offer the same level of weld quality and mechanical properties as gas-shielded alternatives.
Gas-Shielded (FCAW-G)
If you're looking for top-notch weld quality and mechanical properties, gas-shielded flux-cored wires are where it's at. These welding wires combine the benefits of a flux core with an external shielding gas (like CO2 or an argon mix) for maximum protection and performance.
Flux-cored wire offers its own benefits, with the internal flux generating slag to remove impurities from the weld puddle. However, external shielding gas elevates welding performance by creating an inert environment around the arc. This crucial feature prevents atmospheric contamination and leads to superior weld characteristics.
With gas-shielded flux-cored wires, you can expect cleaner welds. They also splatter less and are stronger, withstanding more pulling and hitting. These wires are perfect for building things that need super strong welds, like bridges, ships, and giant machines.
That said, gas-shielded wires do require a bit more setup and equipment. But many welders find the extra effort totally worth it for the superior weld quality and flexibility!
TIG Welding Wires
When it comes to TIG (Tungsten Inert Gas) welding, the wire you choose plays a crucial role in determining the quality and strength of your welds. TIG welding uses a non-consumable tungsten electrode and a separate filler metal (in the form of a wire) to build up the weld bead.
TIG wires are typically solid, uncoated wires available in a variety of alloys like mild steel, stainless steel, aluminum, and even exotic metals like titanium and nickel alloys. The wire's composition is carefully selected to match the base metal's properties, ensuring optimal weld integrity and corrosion resistance.
One of the key advantages of TIG welding is its ability to produce incredibly clean, precise, and visually appealing welds. And the filler wire plays a big part in achieving that coveted stack-of-dimes appearance. With the right wire, shielding gas, and technique, you can lay down welds with minimal spatter, porosity, or other defects.
TIG wires come in a range of diameters, with smaller diameters (like 0.035" or 0.045") being commonly used for intricate or thin-gauge welding, while larger diameters (up to 1/8" or 3.2mm) are better suited for thicker materials or when higher deposition rates are required.

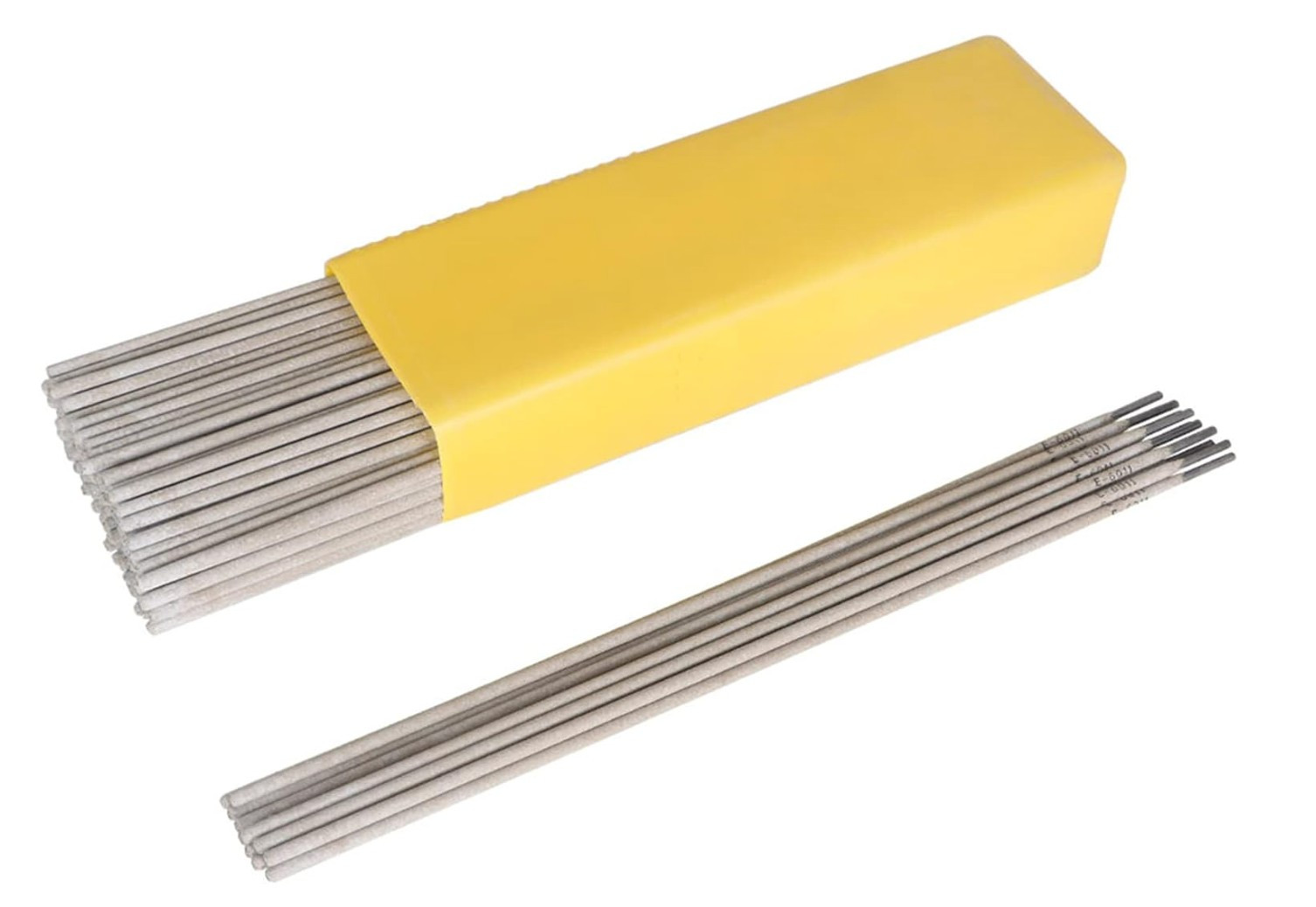

Stick Electrodes
Let's talk about stick welding electrodes – the OG of the welding world! And at the heart of this classic process lies the humble stick electrode, a coated rod that serves as both the filler metal and the source of shielding gas.
Stick electrodes are essentially solid metal wires (typically mild steel or other alloys) coated with a thick layer of flux. This flux coating is what sets stick electrodes apart – it's a carefully formulated mixture of ingredients that provide several key functions during welding.
First off, the flux coating generates shielding gases to protect the molten weld puddle from atmospheric contamination. It also helps remove oxides and other impurities from the weld area, thanks to its deoxidizing and slag-forming properties.
But that's not all – the flux coating also contributes to the overall weld quality and mechanical properties. Different flux formulations can influence the weld's penetration, bead profile, and even the finished weld's strength and ductility.
Related - Best Welding Rods
Stick electrodes come in a wide range of diameters (from as small as 1/16" to as large as 1/4") and various coatings tailored for specific applications, like mild steel, stainless steel, cast iron, and even hardfacing and dissimilar metal welds.
While stick welding may not be as precise or clean as TIG welding, it's still a reliable and versatile process, especially for outdoor or field welding situations where portability and simplicity are key.
Material Composition of Welding Wires
When it comes to welding wires, their material composition plays a crucial role in determining the weld's strength, corrosion resistance, and overall performance. But what exactly goes into these wires? Let's take a closer look.
The Base Metal
At the core of any welding wire is the base metal – the primary alloy that makes up the wire's composition. Common base metals used in welding wires include:
- Mild Steel: Low-carbon steel, typically with a carbon content of 0.06-0.25%. It's affordable, versatile, and suitable for general-purpose welding applications.
- Stainless Steel: Chromium (10-30%) and nickel (up to 38%) are added to provide corrosion resistance. Different grades (like 308L and 316L) offer varying levels of corrosion protection.
- Aluminum: Pure aluminum or aluminum alloys like 4043 and 5356 are used for welding aluminum components.
- Copper: Pure copper or copper alloys like silicon bronze are used for welding copper-based materials.
- Nickel Alloys: Nickel-based alloys like Inconel and Hastelloy are used for high-temperature and corrosive environments.
Alloying Elements
But the base metal is just the start. Welding wires often contain various alloying elements that enhance specific properties or improve weldability. Some common alloying elements include:
- Carbon: Increases strength but reduces ductility. Careful control is required to prevent cracking.
- Manganese: Enhances strength, deoxidizes the weld, and improves fluidity.
- Chromium: Provides corrosion resistance in stainless steel and nickel alloys.
- Nickel: Improves strength, toughness, and corrosion resistance in stainless steel and nickel alloys.
- Molybdenum: Enhances corrosion resistance, especially in harsh environments.
- Silicon: Deoxidizes the weld, improves fluidity, and enhances resistance to certain types of corrosion.
The specific alloying elements and their percentages are carefully controlled to achieve the desired weld properties and match the base metal's composition.
Flux and Coatings
For certain types of welding wires, like flux-cored and stick electrodes, the wire's composition also includes flux or coatings. These serve several functions, including:
- Generating shielding gases to protect the weld from atmospheric contamination.
- Providing deoxidizing and slag-forming elements to purify the weld.
- Enhancing arc stability, bead profile, and other welding characteristics.
The flux or coating formulations can vary greatly based on the wire type and intended application, with different ingredients like minerals, metallic powders, and organic compounds.
So, as you can see, the material composition of welding wires is a complex and carefully engineered aspect. From the base metal to the alloying elements and flux/coatings, each component plays a vital role in ensuring the wire performs as intended and produces high-quality, defect-free welds.
Welding Wire Specifications and Classifications
Welding Wire Specifications
Welding wire specifications define the wire's characteristics and capabilities. Understanding these specs is crucial for selecting the right wire and achieving optimal weld quality. Let's explore some key specifications:
Wire Diameter
Wire diameter might seem like a simple measurement, but it significantly impacts feed-ability, deposition rate, and weld bead profile. Diameters typically range from 0.023 inches (0.6 mm) for thin or intricate welding to 1/4 inch (6.4 mm) for thicker materials or higher deposition rates.
According to AWS A5.18, common solid wire diameters for mild steel are 0.035", 0.045", and 0.052".
A smaller diameter allows smoother wire feeding, while a larger diameter can handle higher amperage and faster travel speeds. The diameter also affects the weld bead's shape and appearance, so it's essential to choose the right size for your application.
Tensile Strength and Ductility
Tensile strength and ductility are crucial mechanical properties that define a welding wire's performance. Tensile strength measures the wire's resistance to breaking under tensile (stretching) forces. Higher tensile strength is desirable for structural or load-bearing applications.
However, ductility – the ability to deform plastically before fracturing – is equally important. It prevents brittle fractures and allows the weld to accommodate some deformation without cracking. Achieving a good balance between strength and ductility is key.
These properties depend on the wire's material composition and alloying elements. For instance, carbon can increase strength but reduce ductility if present in excessive amounts.
Shielding Gas Compatibility
Welding wires are designed for compatibility with specific shielding gases and welding processes. Using the wrong combination can lead to issues like porosity, lack of fusion, or excessive spatter.
Some wires work best with CO2, while others require argon or argon-based mixes. Additionally, certain wires are meant for MIG welding, while others are intended for TIG or flux-cored arc welding processes.
Always consult the manufacturer's recommendations and match the wire to the intended shielding gas and welding process. Doing so ensures optimal performance and prevents defects in your welds.
Understanding wire specifications like diameter, mechanical properties, and shielding gas compatibility is vital. It allows you to select the appropriate wire and unlock its full potential for high-quality, defect-free welds.
Welding Wire Classifications
To standardize and communicate welding wire specifications, various industry organizations have developed classification systems. These classifications serve as a universal standard which ensures compliance with quality standards and aiding in wire selection.
AWS Classifications
The American Welding Society (AWS) offers a widely recognized classification system for welding wires. AWS classifications provide a concise way to identify a wire's composition, mechanical properties, and suitable applications.
For example, an AWS A5.18 ER70S-6 classification indicates:
- A solid carbon steel electrode ("ER")
- Minimum tensile strength of 70,000 psi (483 MPa)
- Contains specific alloying elements like manganese and silicon ("S-6")
The AWS A5.18 specification covers solid carbon steel electrodes and rods for gas shielded arc welding, making it one of the most widely used standards.
AWS classifications exist for various wire types, including flux-cored (E71T-1C/M) and stainless steel (ER308L). Each classification provides a shorthand way to identify the wire's capabilities and suitability.
ISO Classifications
The International Organization for Standardization (ISO) also has a classification system for welding wires. ISO classifications offer more detailed information about material composition, shielding gas requirements, and welding position suitability.
An example ISO 14341-A G 42 4 M21 3Si1 classification indicates:
- A solid wire for gas shielded arc welding ("G")
- Contains 4% manganese and 1% silicon ("M21 3Si1")
- Suitable for all welding positions ("42")
These comprehensive classifications provide a thorough understanding of the wire's characteristics and limitations.
Compliance and Quality Assurance
Adhering to AWS, ISO, or other recognized classifications ensures compliance with industry standards and quality assurance. When a wire meets the requirements of a specific classification, it has undergone thorough testing and vetting for its intended applications.
Following these classifications is crucial for critical structural projects or applications demanding consistent weld quality. They offer a stamp of approval from welding authorities, providing confidence in the wire's performance.
By understanding welding wire classifications, welders and fabricators can decipher the codes and select the perfect wire for their specific needs, ultimately contributing to successful and reliable welding projects.
Guide to Selecting the Right Welding Wire
Picking the perfect welding wire can feel like navigating a minefield. With so many options out there, it's easy to get overwhelmed. But fear not, my friend! This guide will help you choose the right wire for your project, every single time.
Step 1: Identify the Base Metal
The first step is to determine the base metal you'll be welding. Are you working with mild steel, stainless steel, aluminum, or something else entirely? Matching the wire's composition to the base metal is crucial for achieving strong, corrosion-resistant welds.
Step 2: Consider the Welding Process
Different welding processes have their own wire requirements. For example, MIG welding typically uses solid wires or flux-cored wires, while TIG welding calls for specific filler rods.
Don't try to force a square peg into a round hole – using the wrong wire for your welding process can lead to all sorts of nasty defects. Always consult the manufacturer's recommendations or reference materials to ensure compatibility.
Step 3: Evaluate Mechanical Properties
Tensile strength and ductility are two key mechanical properties to consider when selecting a welding wire. If you're working on a structural or load-bearing application, you'll want a wire with higher tensile strength to ensure your welds can handle the stress.
But ductility is equally important – it prevents brittle fractures and allows the weld to deform slightly without cracking. Striking the right balance between strength and ductility is essential for a reliable, long-lasting weld.
Step 4: Check Shielding Gas Requirements
Some welding wires are designed to work with specific shielding gases, while others are more versatile. For instance, certain stainless steel wires may require an argon-based shielding gas to prevent oxidation and discoloration.
Make sure to match the wire to the appropriate shielding gas (or select a self-shielded wire if working outdoors or in tight spaces). Using the wrong gas can lead to porosity, lack of fusion, or other defects that'll have you tearing your hair out.
Step 5: Consider Operating Conditions
The environment and operating conditions of your project should also factor into your wire selection. Are you welding in extreme temperatures? Will the welded component be exposed to corrosive environments or high stress levels?
In these cases, you may need to opt for a more specialized wire with enhanced corrosion resistance, high-temperature capabilities, or specific alloying elements to meet the demanding conditions.
Step 6: Refer to Industry Standards and Classifications
Finally, don't forget to consult industry standards and classifications when selecting your welding wire. Organizations like the American Welding Society (AWS) and the International Organization for Standardization (ISO) have established classifications that provide valuable information on wire composition, mechanical properties, and suitability for various applications.
By following these guidelines and considering factors like base metal, welding process, mechanical properties, shielding gas requirements, operating conditions, and industry standards, you'll be well on your way to choosing the perfect welding wire for your project.
Remember, the right wire can mean the difference between a high-quality, long-lasting weld and a frustrating, defect-ridden mess.
Common Welding Wire Problems & Solutions
Even the most seasoned welders can run into issues with their welding wires. But don't worry – we've got your back! Here are eight common welding wire problems and their solutions:
1. Porosity
Porosity is a common issue where tiny holes or pockets form in the weld, often caused by gas entrapment or contamination. But don't stress, there are ways to deal with it. First up, check that shielding gas flow - make sure it's flowing nicely. And your wire? Yeah, give that a look too. Any moisture or gunk on there could be the culprit. A dehumidifier or just storing your wire properly can work wonders for preventing porosity from ruining your day.
2. Lack of Fusion
Incomplete fusion is a real pain. When that weld metal doesn't fully mesh with the base metal, you're left with a weak joint that could fail. Not ideal, right? Luckily, there are some tricks to fix it. Tweak those welding parameters like amperage, voltage, travel speed - find the sweet spot. And don't overlook weld prep and joint - those are crucial too. Oh, and the wire itself? Using the right diameter and composition can boost fusion like nobody's business.
3. Spatter
Excessive spatter is just plain messy. All that metal transfer across the arc, leaving a trail of debris and potential defects? No thanks. But you've got options, my friend. Start by optimizing your welding parameters - that can make a huge difference. Then, double-check that shielding gas coverage. And if that's not enough, consider switching to a low-spatter wire. Those babies are designed to keep the spatter under control
4. Wire Feed Issues
Erratic feeding, birdnesting, stubbing causes sorts of chaos. But don't give up just yet. First things first, clean and maintain that wire feeder like it's your prized possession. Check those liners and drive rolls too; proper alignment is key. And while you're at it, make sure the wire diameter matches your equipment's specs. A little TLC can go a long, long way.
5. Cracking
Hot or cold cracking is a nightmare scenario. Those cracks in the weld or heat-affected zone can seriously compromise your joint's strength. But there are ways to prevent it. Start by selecting a wire with the right composition and mechanical properties for your application. Preheating and controlling those inter-pass temperatures can also help keep cracking at bay. A little extra effort upfront can save you major headaches down the line.
6. Undercut
Oof, that excessive melting or burning away of the base metal? The one that leaves those unsightly grooves or undercuts along the weld toes? Yeah, that's a problem. But don't throw in the towel just yet! Adjusting your welding parameters, travel speed, and joint prep can help reduce undercut. Or, you could try using a larger diameter wire - that extra material can help fill those joints properly and avoid those pesky grooves.
7. Burn-through
Burn-through is the worst. All that excessive heat input just burning right through the base metal, leaving holes or voids in its wake. But don’t worry, we have a solution! Start by reducing that amperage or heat input, and increase your travel speed. And don't forget about proper joint fitup and backing materials - those can be life-savers. A little finesse and attention to detail can make all the difference.
8. Distortion
Warping or distortion from welding heat and stresses? It's enough to make a grown welder cry. However, implementing proper welding sequences and techniques can help minimize movement and distortion. Using welding clamps or fixtures to keep everything in place is smart too. And if all else fails, consider preheating or post-weld heat treatment. It might be extra work, but it's better than dealing with a warped mess, right?
Prevention is key, my welder friends. But when problems do pop up, don't be afraid to troubleshoot and make adjustments.
Takeaway
Selecting the right welding wire can be a daunting task, even for experienced welders. This guide has shed light on the factors to consider and provided a framework for navigating the vast array of options. Remember, the perfect wire can elevate your welds and streamline your workflow.
