Welding clamps are specialized tools used in welding operations to securely hold and position the workpieces being joined. They play a crucial role in ensuring the quality and integrity of welded joints. The primary purpose of welding clamps is to maintain proper alignment and prevent movement or distortion during the welding process.
In this comprehensive article, we will explore different types of clamps, their materials and construction. We will also explore the factors to consider when selecting the appropriate clamp for a specific welding application. Read on!
What is a Welding Clamp?
A welding clamp is a tool used in welding processes to hold metal workpieces securely in place during the welding operation. It typically consists of two jaws that can be adjusted to grip the workpiece firmly, preventing movement or distortion while welding. Welding clamps come in various types and sizes, including C-clamps, F-clamps, locking pliers, and magnetic clamps, each designed for specific welding applications and requirements. The primary function of a welding clamp is to ensure proper alignment and stability of the workpieces, allowing welders to achieve accurate and high-quality welds.
Types of Welding Clamps
C-Clamps (Most Common Type)
C-clamps are one of the most widely used and versatile types of welding clamps. They consist of a C-shaped frame with a threaded screw mechanism that applies clamping force. The screw is turned to adjust the clamping pressure, allowing the clamp to securely hold workpieces in place.
Variations of C-Clamps
Heavy-duty C-clamps: Designed for clamping thicker and heavier materials, these clamps have a more robust construction and higher clamping force capacity.
Swivel jaw C-clamps: Feature a swiveling jaw that can rotate to accommodate workpieces at different angles or curved surfaces.
Deep-throat C-clamps: Have an extended reach, allowing them to clamp workpieces in hard-to-reach areas or deeper recesses.
Applications and Best Practices for C-Clamps
C-clamps are versatile and can be used for various welding applications, including sheet metal fabrication, structural steel welding, and general repair work.
For optimal use, ensure proper sizing of the clamp to match the workpiece thickness and material.
Apply sufficient clamping force to prevent movement while avoiding excessive pressure that could cause distortion or damage.
Use heat-resistant pads or insulation when clamping near areas exposed to high temperatures during welding.
Magnetic Welding Clamps
Magnetic welding clamps utilize powerful electromagnetic forces to securely hold ferrous (iron-based) workpieces. They consist of an electromagnet or permanent magnet housed within a clamping mechanism. When activated, the magnetic field generates a strong holding force, eliminating the need for mechanical clamping.
Types of Magnetic Welding Clamps
Fixed-angle magnetic clamps: These clamps have a fixed angle (typically 90° or 135°) between the magnets, suitable for welding corners or T-joints.
Multi-angle magnetic clamps: Featuring adjustable or pivoting magnets, these clamps can accommodate a wide range of angles for welding various joint configurations.
Applications and Advantages of Magnetic Welding Clamps
Magnetic clamps are commonly used in fabrication shops, construction sites, and shipyards for welding structural steel components. They provide a quick and efficient clamping solution, eliminating the need for complex setups or drilling holes.
Magnetic clamps allow for easy positioning and repositioning of workpieces, increasing productivity. They are particularly useful for clamping large or irregular-shaped components where traditional clamps may be impractical.
Welding Cleats and Toggle Clamps
Welding Cleats
Welding cleats, also known as weld clips or weld tabs, are small metal plates with slots or holes designed to be tack-welded or clamped onto the workpiece. They provide a secure attachment point for positioning and clamping during welding operations.
Toggle Clamps
Toggle clamps consist of a lever mechanism that applies clamping force when engaged. They typically feature a pivoting arm or toggle that locks into position, creating a secure hold on the workpiece. Toggle clamps are often used in conjunction with welding cleats or other clamping accessories.
Applications and Benefits of Welding Cleats and Toggle Clamps
Welding cleats and toggle clamps are commonly used in fabrication shops, shipyards, and construction sites for welding various materials, including structural steel, sheet metal, and piping. They offer flexibility in clamping configurations and can be easily repositioned as needed.
Toggle clamps provide quick and secure clamping without the need for complex setups or permanent fixtures. The combination of welding cleats and toggle clamps allows for efficient clamping in tight spaces or awkward positions.

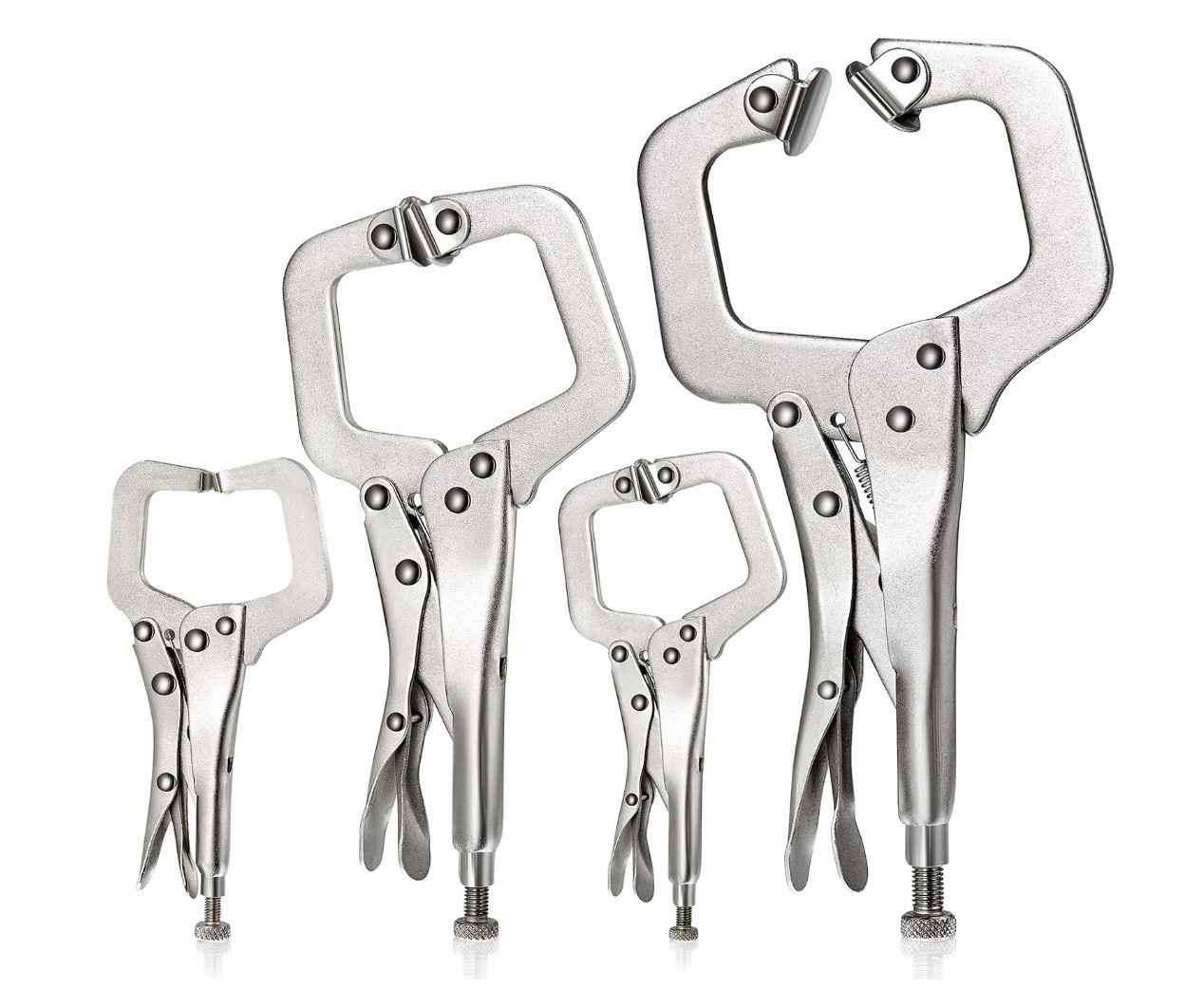

Vise-Grips and Locking Pliers for Welding
Vise-grips, also known as locking pliers or mole grips, are adjustable clamping tools with serrated jaws that can grip and hold workpieces firmly. They feature a locking mechanism that maintains the clamping force, allowing for hands-free operation.
Applications and Considerations
Vise-grips can be used as temporary clamping devices in welding applications, particularly for smaller projects or repair work. They are suitable for clamping thin or delicate materials where excessive clamping force could cause damage.
It's important to use heat-resistant pads or insulation to protect the tool from direct exposure to high temperatures during welding. Vise-grips should be used with caution, as they may not provide sufficient clamping force or stability for heavy-duty welding applications.
Specialized Welding Clamps
Pipe Welding Clamps
Pipe welding clamps, also known as alignment clamps, are designed specifically for holding and aligning pipe sections during welding. They feature adjustable jaws or chains that can accommodate various pipe diameters and ensure proper alignment of the joint. Pipe clamps are essential for maintaining fit-up and preventing movement during pipe welding operations.

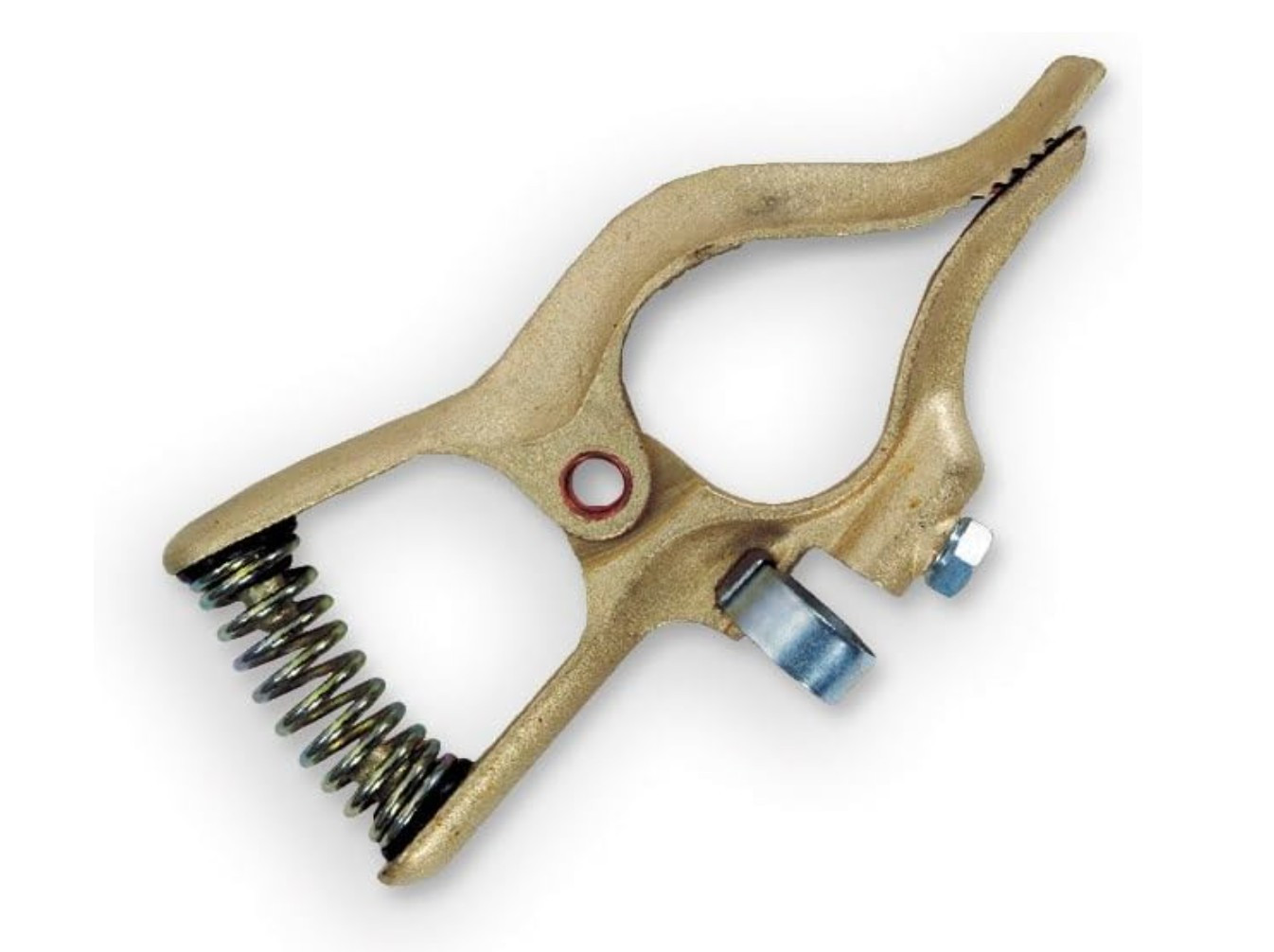

Ground Clamps
Ground clamps are used to establish a secure electrical connection between the welding machine and the workpiece. They feature sharp teeth or serrated jaws that bite into the workpiece, ensuring proper grounding and completing the welding circuit. Proper grounding is crucial for achieving consistent arc performance and preventing stray electrical currents.
Tack Welding Clamps
Tack welding clamps are specialized tools used to hold and position workpieces during tack welding operations. They facilitate the placement of tack welds, which temporarily join the components before final welding. Tack welding clamps are particularly useful for complex assemblies or when precise positioning is required.
Factors to Consider When Choosing Welding Clamps
When selecting the appropriate welding clamps for a specific job, several factors must be taken into consideration to ensure optimal performance, safety, and quality of the welded joint. Here are some critical factors to keep in mind:
Material and Thickness of Workpieces
The material and thickness of the workpieces being welded play a significant role in determining the type and size of clamp required. Different materials, such as steel, aluminum, or stainless steel, have varying properties that may require specialized clamping solutions. Additionally, the thickness of the workpieces will dictate the clamping force needed to securely hold them in place without causing deformation or damage.
Clamping Force and Capacity
Welding clamps must provide sufficient clamping force to prevent movement and misalignment during the welding process. The required clamping force depends on factors such as the workpiece material, thickness, and the welding process being used. It's essential to choose clamps with adequate clamping capacity to ensure a secure hold while avoiding excessive force that could lead to distortion or damage.
Throat Depth and Reach
The throat depth and reach of a welding clamp refer to its ability to access and clamp workpieces in confined or hard-to-reach areas. Some applications may require clamps with a deep throat or long reach to accommodate larger workpieces or complex assemblies. Selecting clamps with suitable throat depth and reach can help ensure proper positioning and clamping, even in tight spaces.
Jaw Design and Versatility
The design of the clamp jaws plays a crucial role in their versatility and ability to accommodate different workpiece shapes and geometries. Clamps with adjustable or pivoting jaws can adapt to various angles and contours, allowing for better fit and clamping in challenging situations. Additionally, specialized jaw designs, such as serrated or grooved jaws, can provide better grip and prevent slippage on certain materials.
Clamping Speed and Ease of Use
In high-volume or time-sensitive welding operations, the speed and ease of use of the welding clamps can significantly impact productivity. Clamps with quick-release mechanisms, ergonomic handles, or adjustable locking features can streamline the clamping process, reducing setup times and increasing efficiency.
Safety Features (heat resistance, ground compatibility)
Safety is a paramount concern when working with welding clamps. Heat resistance is a critical feature, as clamps may be exposed to high temperatures during the welding process. Clamps with heat-resistant coatings or insulation can help prevent damage and ensure safe handling. Additionally, some clamps may require specific grounding or electrical compatibility to avoid potential hazards or interference with the welding circuit.
Durability and Maintenance
Welding clamps are subjected to harsh conditions and frequent use, making durability and ease of maintenance essential considerations. Clamps constructed from high-quality materials, such as heat-treated steel or aluminum alloys, can withstand the rigors of welding environments. Furthermore, clamps with replaceable components or simple maintenance requirements can extend their service life and reduce downtime.
Cost and Availability
While cost should not be the sole determining factor, it is still an important consideration, especially for large-scale projects or applications with budget constraints. Balancing the cost of welding clamps with their performance, durability, and suitability for the intended application is crucial. Additionally, the availability of clamps from reputable manufacturers or suppliers can affect lead times and ensure a consistent supply for ongoing operations.
Best Practices for Using Welding Clamps
Proper use and handling of welding clamps are essential to maximize their effectiveness, ensure safety, and achieve high-quality welded joints. Here are some best practices to follow:
Proper Clamp Selection for the Job
Before starting any welding project, it's crucial to carefully assess the specific requirements and select the appropriate clamps accordingly. Consider factors such as the workpiece material, thickness, joint configuration, and welding process to choose the right clamps for the job. Consulting with experienced welders or referring to manufacturer guidelines can help make informed decisions.
Workpiece Preparation and Positioning
Proper workpiece preparation is essential for effective clamping. Clean and deburr the surfaces to be welded, ensuring they are free from contaminants or irregularities that could interfere with the clamping process. Position the workpieces accurately according to the joint design, aligning them precisely before clamping to achieve optimal fit-up.
Safe Clamping Techniques
Safety should always be a top priority when working with welding clamps. Follow proper fire safety protocols by removing flammable materials from the vicinity and having a fire extinguisher readily available. When using clamps with electrical grounding connections, ensure they are securely attached to the workpiece and connected to the appropriate grounding point to prevent stray currents or electrical hazards.
Maintaining and Storing Welding Clamps
Proper maintenance and storage of welding clamps can prolong their service life and ensure consistent performance. After use, clean the clamps thoroughly to remove any debris, spatter, or contaminants. Inspect them regularly for signs of wear, damage, or misalignment, and replace any worn or defective components promptly. Store clamps in a dry, protected area when not in use to prevent corrosion or damage.
Training and Skill Development
Investing in proper training and skill development for welders and operators is crucial for safe and effective use of welding clamps. Provide comprehensive training on clamp selection, setup, and usage techniques, as well as safety protocols. Encourage ongoing skill development and knowledge-sharing among the team to foster best practices and continuous improvement.
Common Mistakes to Avoid When Selecting Welding Clamps
1. Neglecting Safety Considerations: Sometimes, people forget to think about safety features. It's important to check things like how much weight the clamp can hold or if it's compatible with the materials you're using. Not paying attention to safety can lead to accidents or damage to your workpiece. Always make safety a priority when picking out welding clamps to make sure you're working in a safe environment.
2. Ignoring Project Requirements: It's easy to overlook what your project really needs. You should take a good look at things like the type of material you're working with, how thick it is, and what shape it is. If you don't think about these things, you might end up choosing clamps that aren't right for the job. So, make sure you spend some time figuring out exactly what your project needs to pick the best clamps for it.
3. Opting for Low-Quality Clamps: Sometimes, people try to save money by buying cheap clamps. But these clamps often don't last long and can cause problems. They might not hold your workpiece securely or be very accurate. It's better to invest in good-quality clamps from well-known brands. They might cost more upfront, but they'll save you money in the long run by working better and lasting longer.
4. Underestimating Holding Capacity: If you pick clamps that can't hold enough weight for your project, they might not do their job properly. They could slip or move while you're welding, causing mistakes or accidents. Always make sure the clamps you choose can hold more weight than you need them to. That way, you can be sure they'll stay in place and keep your workpiece steady.
5. Neglecting Versatility and Adjustability: Some clamps can do more than others, like adjusting to different workpiece shapes or sizes. If you don't think about this when you're choosing clamps, you might end up with ones that can't handle all the jobs you need them for. It's a good idea to pick clamps that can be adjusted and used in different ways so you can work more efficiently and tackle a variety of projects.
6. Disregarding User Reviews and Recommendations: Before buying clamps, it's smart to see what other people think of them. User reviews and recommendations can give you a good idea of how well clamps work and if they're worth buying. If you don't look at these, you might end up with clamps that have problems or don't work very well. Take the time to read what other users have to say so you can make the best choice for your needs.
The Cost of Welding Clamps
Welding clamps are essential tools for any welder, but their cost can vary depending on several factors. The price of welding clamps typically ranges from around $10 to $50 or more per clamp, depending on the type, size, and brand. Factors that can affect the cost include the following:
1. Type of Clamp:

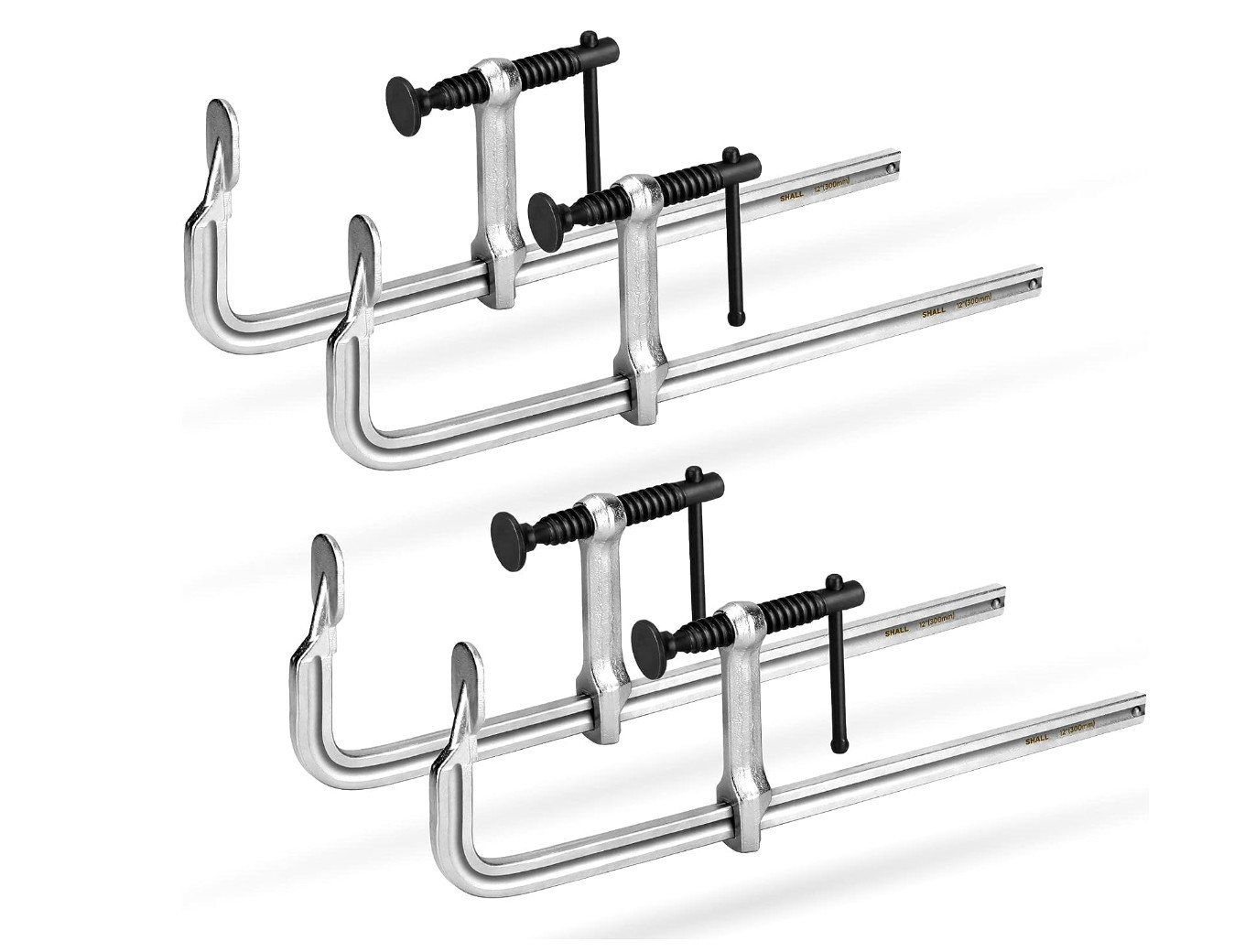

Different types of welding clamps, such as C-clamps, F-clamps, locking pliers, or magnetic clamps, have varying costs based on their design, features, and materials.
2. Size and Capacity:
Larger clamps with a higher clamping capacity generally cost more than smaller ones. The size and strength of the clamp needed for a particular job will influence its price.
3. Brand and Quality:
Well-known brands and higher-quality clamps often come with a higher price tag. While they may be more expensive upfront, they can offer better durability, performance, and reliability in the long run.
4. Quantity Purchased:
Buying clamps in bulk or as part of a set may result in lower per-unit costs compared to purchasing individual clamps separately.
5. Additional Features:
Clamps with extra features like ergonomic handles, adjustable components, or specialized coatings may command a higher price due to added functionality and user comfort.
Budget Considerations
When considering the cost of welding clamps, it's essential to weigh the upfront expense against the benefits they provide in terms of efficiency, safety, and quality of welds. Investing in high-quality clamps suited to your specific welding needs can ultimately save you time and money by reducing rework, improving productivity, and minimizing the risk of accidents or injuries. Additionally, comparing prices from different suppliers and looking for deals or discounts can help you get the best value for your money when purchasing welding clamps.
FAQs Related to Welding Clamps
How tight should I clamp my welds?
Clamping your welds just snug enough to hold them firmly in place is good. Too tight and you might warp your workpiece. Check your weld's fit and make adjustments if needed.
Can I use regular C-clamps for welding?
Yes, you can use regular C-clamps for welding. They're handy for holding pieces together while you weld. Just make sure they're clean and in good shape to avoid any problems.
Why Use a Magnetic Welding Clamp?
Welding can be hard work, but the right tools can make it easier. One handy tool that many welders like is the magnetic welding clamp. These little devices use magnets to hold metal pieces together while you weld them, making your job smoother and safer.
What Makes Magnetic Welding Clamps Special?
Magnetic welding clamps are simple but effective. They have strong magnets inside them that attract to metal objects, creating a strong grip. This means you don't have to worry about holding the pieces together with your hands or using other clamps that might get in the way. With magnetic clamps, you can focus on your welding without distractions.
When should I use welding cleats or toggle clamps?
Use welding cleats or toggle clamps when you need extra grip or support. They help hold odd-shaped pieces securely in place during welding. Make sure to choose the right type for your project.
How do I maintain the welding clamps for optimal performance?
Keeping your welding clamps clean and rust-free is key. Wipe them down after use and store them in a dry place. A little oil now and then can help keep them working smoothly. Regular check-ups ensure they're always ready to go.
Takeaway
In wrapping up, mastering welding clamps is super important for anyone into welding. Knowing the different types and when to use them is key for better welding projects. By following these tips, you can get better at welding, handle more projects, and get better results. Always remember to stay safe and pick good-quality clamps. As you keep learning, stay curious about new clamp designs and technologies. Learning more can help you stay ahead and improve your welding skills.
