Welding gases play essential roles in modern fabrication through protection, heating, and arc stabilization. These specialized gases ensure weld quality while maintaining safety throughout various welding processes. Their proper selection directly impacts weld strength, appearance, and overall project success.
In this comprehensive guide, we'll explore different welding gas types, their unique properties, and specific applications. We'll also cover safety considerations, selection criteria, and best practices for handling welding gases. This knowledge helps welders choose the right gases for optimal results.
What are Welding Gases?
Welding gases are specialized atmospheric compounds used during metal joining processes. These gases create controlled environments that protect molten metal from contamination. They also provide the necessary conditions for maintaining stable welding arcs.
Different welding processes require specific gas types to achieve optimal results. Shielding gases protect the weld pool from oxygen and nitrogen in air. Other gases provide heat or help create the welding arc itself.
Consider MIG welding aluminum as a practical example of gas usage. The process uses pure argon gas to shield the molten aluminum from air. Without this protection, the aluminum would oxidize and create weak, porous welds. The argon creates an inert atmosphere that allows clean metal fusion.
Classification of Welding Gases
Inert Gases
Argon
Argon serves as the most commonly used inert shielding gas in welding applications. This colorless, odorless gas makes up nearly 1% of Earth's atmosphere. It provides excellent protection for reactive metals like aluminum, titanium, and stainless steel. Argon creates a stable arc with minimal spatter during welding operations.
The gas density of argon exceeds that of air, providing superior coverage. This heavier weight helps the gas settle around the weld pool effectively. Argon works particularly well for TIG welding where precise control is essential. It also serves as a base gas for many gas mixtures.
Helium
Helium offers unique properties that make it valuable for specific welding applications. This lightweight gas provides deeper penetration than argon in many situations. Welders often choose helium for thick material sections requiring full penetration. The gas also enables faster welding speeds due to its thermal properties.
Pure helium creates a very hot arc that transfers more energy. This characteristic makes it ideal for welding heat-sink materials like copper. However, helium requires higher flow rates than argon for proper coverage. Its lighter weight means it doesn't settle as well around the weld.
Active Gases
Carbon Dioxide (CO2)
Carbon dioxide serves as an economical active shielding gas for steel welding. This reactive gas partially breaks down in the welding arc's heat. The breakdown creates carbon monoxide and oxygen that affect the weld chemistry. CO2 produces deeper penetration than inert gases on carbon steel.
Pure CO2 creates more spatter than gas mixtures but costs significantly less. The gas works well for flux-cored welding and some MIG applications. Many fabrication shops use CO2 for general steel welding projects. However, it cannot be used with aluminum or other reactive metals.
Oxygen
Oxygen acts as an additive gas mixed with other shielding gases. Small percentages improve arc stability and weld profile characteristics. Typical mixtures contain 1-5% oxygen with argon or CO2 base gases. The oxygen helps create a more fluid weld pool on steel.
Adding oxygen increases penetration depth and reduces surface tension in steel welds. However, too much oxygen creates oxidation problems and weld defects. This gas should never be used with aluminum or reactive metals. Proper mixture ratios are critical for achieving desired weld properties.
Mixed Gases
Argon/CO2 Blends
Argon and CO2 mixtures combine the benefits of both gases effectively. Common blends include 75% argon with 25% CO2 for steel welding. These mixtures reduce spatter while maintaining good penetration characteristics. The argon provides arc stability while CO2 adds penetration depth.
Different blend ratios suit various welding applications and material thicknesses. Higher argon content creates smoother welds with less cleanup required. The CO2 component keeps costs lower than pure argon systems. These blends represent the most popular choice for MIG welding steel.
Argon/Helium Blends
Argon and helium mixtures offer enhanced heat input for challenging materials. These blends combine argon's stability with helium's penetration characteristics. Typical ratios range from 25% to 75% helium content. The mixtures work exceptionally well on thick aluminum and stainless steel.
Higher helium content increases the arc voltage and heat input significantly. This characteristic helps when welding materials with high thermal conductivity. The blends enable faster travel speeds while maintaining proper penetration. Many aerospace applications specify these premium gas mixtures.
Tri-Mix Gases
Tri-mix gases combine three different gases to optimize specific welding characteristics. Common combinations include argon, helium, and CO2 for stainless steel applications. These specialized mixtures can also include small percentages of hydrogen. Each component contributes specific properties to the overall gas performance.
The complexity of tri-mix gases requires precise mixing and quality control. These premium mixtures often serve specialized applications in aerospace and nuclear industries. Proper handling and storage become more critical with complex gas blends. The enhanced performance justifies the additional complexity for critical applications.
Properties of Common Welding Gases
Argon
Argon's high density makes it 1.4 times heavier than air, providing excellent coverage over weld pools. This inert gas creates stable arcs with minimal spatter and smooth bead profiles. Its complete chemical inertness protects reactive metals from oxidation during welding. Argon produces consistent arc characteristics across various welding parameters and positions. The gas enables precise heat control, making it the preferred choice for TIG welding. Its reliability and consistent performance have established argon as the standard shielding gas for aluminum, stainless steel, and titanium welding applications worldwide.
Carbon Dioxide
Carbon dioxide offers significant cost advantages as an active shielding gas for steel welding applications. This reactive gas creates deeper weld penetration than inert gases on carbon steel materials. CO2 breaks down in the arc heat, producing carbon monoxide and oxygen. These breakdown products affect weld chemistry and can increase spatter levels during welding. The gas works exceptionally well for MIG welding mild steel in industrial production environments. Its economical nature and effective penetration characteristics make CO2 popular for structural welding and general fabrication work.
Oxygen
Oxygen serves as an additive gas used in small percentages to enhance welding characteristics. Typically added at 1-5% concentrations, it improves arc stability and weld profile appearance. This highly reactive gas increases weld pool fluidity and reduces surface tension effects. Oxygen additions help achieve better tie-in at weld toes on steel materials. However, excessive oxygen content creates oxidation problems and porosity in finished welds. The gas must never be used with aluminum or other reactive metals due to severe oxidation reactions.
Helium
Helium possesses high ionization potential that creates very hot arcs with excellent heat transfer. This lightweight gas provides superior penetration capabilities compared to argon in many applications. Helium enables faster welding speeds due to its enhanced thermal conductivity properties. The gas works particularly well on thick sections requiring full penetration characteristics. However, helium requires higher flow rates than argon to achieve proper shielding coverage. Its superior heat input makes helium valuable for welding heat-sink materials like copper and thick aluminum sections.
Acetylene
Acetylene produces the highest flame temperature of any fuel gas at approximately 3,200°C. This characteristic makes it ideal for oxy-acetylene welding and cutting applications on steel. The gas burns with a neutral flame when mixed with oxygen in proper ratios. Acetylene becomes chemically unstable at pressures above 15 PSI without special solvents. It requires storage in cylinders filled with porous material and acetone solvent. These safety requirements make acetylene handling more complex than other welding gases but essential for flame welding operations.
Welding Gases by Welding Process
Gases Used in MIG Welding
Pure CO₂ vs CO₂ + Argon Blends
Pure CO2 provides deep penetration and excellent economics for general steel welding applications. However, it creates more spatter and rougher bead appearance than gas mixtures. CO2 and argon blends like 75/25 or 80/20 ratios offer superior arc stability. These mixtures reduce spatter significantly while maintaining good penetration on steel materials. The argon component smooths the arc characteristics and improves bead appearance dramatically. Blended gases cost more than pure CO2 but reduce post-weld cleanup time. Most fabrication shops prefer these mixtures for production welding due to improved quality.
Argon-Oxygen Blends for Spray Transfer
Argon-oxygen mixtures enable spray transfer mode in MIG welding on steel materials. Typical blends contain 95-99% argon with 1-5% oxygen for optimal performance characteristics. The oxygen addition reduces surface tension and improves weld pool fluidity significantly. These mixtures create smooth spray transfer with minimal spatter and excellent bead appearance. Higher oxygen content increases penetration but may cause oxidation problems if excessive. Spray transfer requires higher amperage settings but produces superior weld quality. These blends work best for flat and horizontal welding positions on clean steel.
Tri-mix Gases (Argon, CO₂, Helium)
Tri-mix gases combine three components to optimize specific welding characteristics for challenging applications. Common formulations include argon, CO2, and helium in carefully controlled proportions for stainless steel. These advanced mixtures provide excellent arc stability with superior penetration characteristics. The helium component increases heat input while argon maintains arc stability throughout. CO2 additions help with penetration and reduce costs compared to pure noble gases. These premium mixtures often serve aerospace, nuclear, and high-quality fabrication applications. Proper gas supply systems ensure accurate mixing ratios for consistent welding performance.
Gas Selection by Material: Steel, Stainless Steel, Aluminum
Steel welding typically uses CO2, argon-CO2 blends, or argon-oxygen mixtures depending on requirements. Pure CO2 works for general applications while blends improve quality and reduce spatter. Stainless steel requires argon-based mixtures with small CO2 or oxygen additions for stability. Tri-mix gases often provide optimal results for stainless steel in critical applications. Aluminum welding demands pure argon or argon-helium mixtures to prevent oxidation completely. The reactive nature of aluminum makes any active gas additions problematic for weld quality. Material thickness and welding position also influence optimal gas selection for each application.
Gases Used in TIG Welding
100% Argon Standard
Pure argon serves as the standard shielding gas for most TIG welding applications worldwide. This inert gas provides excellent arc stability and smooth tungsten electrode performance. Argon creates consistent arc characteristics across all welding positions and material thicknesses. The gas produces clean, precise welds with minimal post-weld cleanup requirements. Its density provides superior coverage over the weld pool compared to lighter gases. Pure argon works exceptionally well for aluminum, stainless steel, and exotic metal welding. Most TIG welders begin with pure argon before considering specialty gas mixtures. This reliability makes argon the go-to choice for precision welding applications.
Helium Mix for Deeper Penetration
Argon-helium mixtures provide enhanced heat input and penetration for thick material sections. Common blends range from 25% to 75% helium content depending on application requirements. Higher helium percentages create hotter arcs with increased welding speeds and deeper penetration. These mixtures work particularly well on thick aluminum and stainless steel sections. The enhanced heat input helps overcome material heat-sink effects in heavy sections. However, helium mixtures require higher flow rates and more precise arc length control. The additional heat input can cause distortion in thin materials or delicate assemblies.
Argon-Hydrogen for Stainless Steel
Argon-hydrogen mixtures offer unique benefits for welding austenitic stainless steel materials effectively. Typical blends contain 95% argon with 5% hydrogen for optimal performance characteristics. The hydrogen addition creates a reducing atmosphere that improves weld bead appearance. This mixture produces very clean, bright welds with minimal heat tint discoloration. However, hydrogen can cause cracking problems in carbon steel and other materials. These mixtures should only be used with austenitic stainless steels like 304 and 316. Proper ventilation becomes critical due to hydrogen's flammable nature during welding operations.
Shielding Requirements in Reactive Metals (Titanium, etc.)
Reactive metals like titanium require extremely pure inert gas shielding for successful welding. These materials react rapidly with oxygen, nitrogen, and hydrogen at welding temperatures. Argon purity must exceed 99.995% with moisture content below 10 parts per million. Helium can substitute for argon but requires even higher purity standards. Back purging becomes essential to protect the weld root from atmospheric contamination. Special chamber welding may be necessary for critical titanium components in aerospace applications. Any contamination from active gases creates brittle, weak welds that fail in service.
Gases Used in Stick Welding (SMAW)
Stick welding electrodes typically contain flux coatings that create their own protective atmosphere. The flux decomposes during welding to produce shielding gases and slag protection. This self-shielding capability eliminates the need for external gas supplies in most applications. However, special applications may benefit from additional atmospheric protection during critical welding operations. Wind and drafts can disrupt the natural shielding provided by electrode flux. Some high-quality applications use trailing shields with inert gas for enhanced protection. These special scenarios typically involve critical welds on reactive metals or high-strength materials.
Laboratory and research welding often employs controlled atmospheres for stick welding applications. These environments may use inert gas chambers or purged welding boxes. The controlled atmosphere prevents any atmospheric contamination during critical material evaluation. Research applications study weld metal properties under various atmospheric conditions precisely. Some manufacturing processes use controlled atmosphere welding for consistent quality assurance. These specialized applications require precise gas composition monitoring and control systems. The added complexity provides superior weld quality control for critical research and development work.
Gas Mixtures and Their Applications
Gas mixtures combine the best properties of individual gases to optimize welding performance. Pure gases often have limitations that mixtures can overcome through careful blending. For example, pure CO2 creates deep penetration but produces excessive spatter. Adding argon to CO2 maintains penetration while reducing spatter significantly.
Different applications require specific gas characteristics that no single gas can provide. Mixtures allow welders to balance factors like cost, penetration, arc stability, and appearance. Modern welding often relies on precisely formulated mixtures for consistent, high-quality results. These blends enable welders to tackle challenging materials and demanding applications effectively.
How to Choose the Right Welding Gas?
Material type serves as the primary factor when selecting appropriate welding gases. Steel typically uses CO2 or argon-CO2 mixtures for optimal results and economics. Aluminum requires pure argon or argon-helium blends to prevent oxidation problems. Stainless steel works best with argon-based mixtures containing small active gas additions.
Welding process and position also influence gas selection for specific applications. TIG welding generally uses pure argon for most materials and situations. MIG welding offers more gas options depending on desired penetration and appearance. Consider material thickness, joint design, and quality requirements when making final selections. Consulting welding procedure specifications ensures proper gas choice for each project.
Welding Gas Storage and Handling Safety
Gas Cylinder Storage Guidelines
Color Codes, Upright Positioning, Valve Protection
Gas cylinders use standardized color codes to identify contents and prevent dangerous mix-ups. Argon cylinders are typically dark green while oxygen cylinders appear bright green. Always store cylinders in upright positions to prevent valve damage and ensure safety. Secure cylinders with chains or brackets to prevent falling and potential valve shearing.
Always verify gas type through labels, not just cylinder colors
Keep protective caps on cylinders when not in immediate use
Store cylinders away from heat sources and direct sunlight exposure
Maintain minimum 20-foot separation from combustible materials storage areas
Indoors vs Outdoors Storage
Indoor storage requires adequate ventilation to prevent gas accumulation in enclosed spaces. Outdoor storage protects cylinders from temperature extremes and provides natural ventilation. Never store cylinders in basements or confined spaces without proper ventilation systems. Indoor areas must have gas detection systems for hazardous gas monitoring.
Ensure storage areas have proper ventilation rates per safety codes
Protect outdoor cylinders from weather using appropriate covers or shelters
Maintain storage temperatures between -20°F and 125°F for most gases
Keep storage areas clean and free from oil or grease contamination
Combustible Gas Separation
Separate combustible gases like acetylene from oxygen by minimum required distances. Store different gas types in designated areas to prevent accidental mixing. Maintain at least 20 feet separation or use approved fire-resistant barriers. Post appropriate warning signs to identify hazardous gas storage areas clearly.
Use separate storage rooms for incompatible gas types when possible
Install fire suppression systems appropriate for stored gas types
Maintain accurate inventory records for all stored cylinder quantities
Train personnel on proper segregation requirements and emergency procedures
Handling Precautions
Pressure Checks, Leak Detection
Always check cylinder pressure before connecting to welding equipment or systems. Use appropriate pressure gauges rated for the specific gas being handled. Perform regular leak detection using approved soap solutions on all connections. Never use oil-based products for leak detection on oxygen systems.

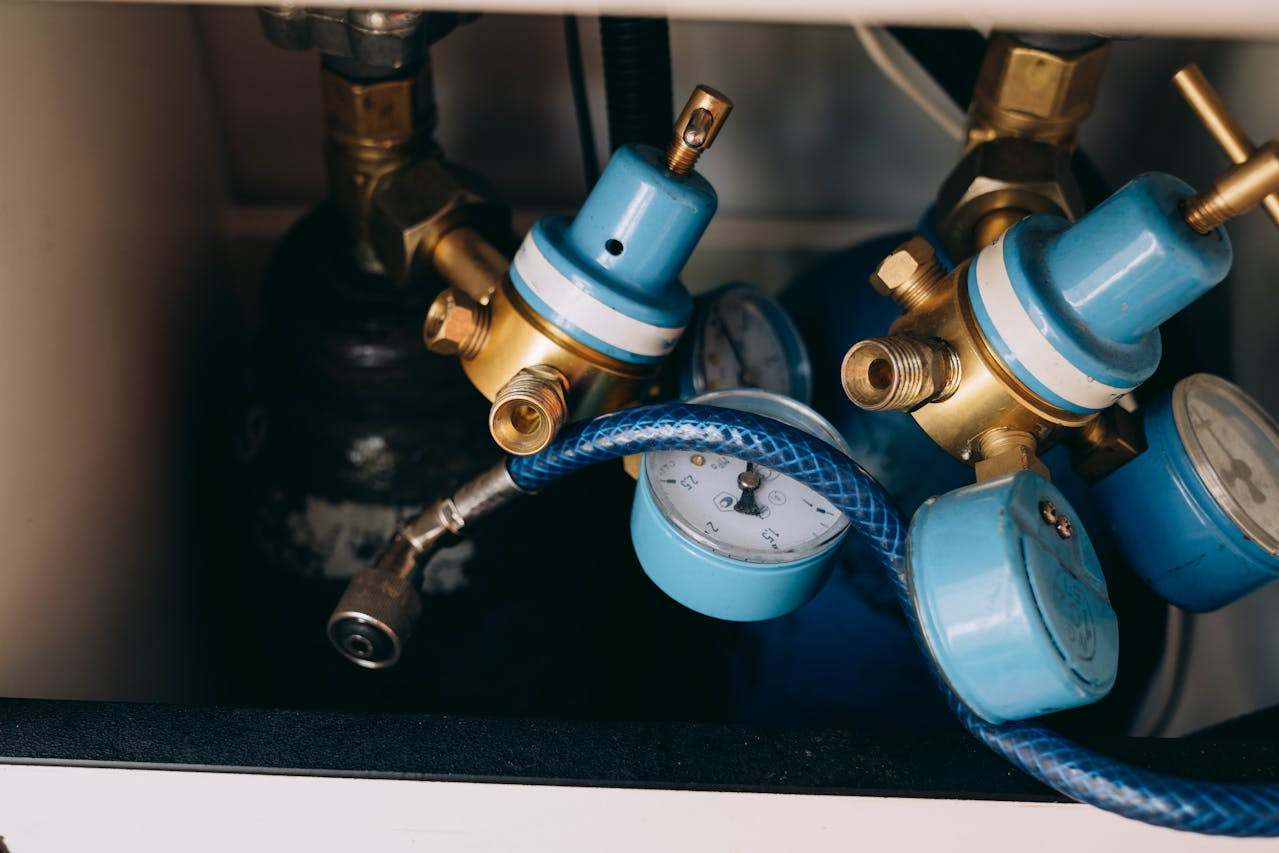

Regulator and Hose Safety
Match regulators to specific gas types and never interchange between different gases. Inspect hoses regularly for cuts, abrasion, or chemical damage that compromises safety. Replace damaged components immediately and never attempt temporary repairs on gas equipment. Ensure proper thread compatibility between regulators and cylinder valves.
Temperature and Ignition Risks
Keep cylinders away from heat sources that could cause dangerous pressure increases. Never use open flames or electric heaters to warm cold cylinders. Maintain awareness of ignition sources when handling flammable gases like acetylene. Ground all equipment properly to prevent static electricity buildup and discharge.
Regulatory Compliance and Safety Standards
OSHA, NFPA, ANSI Guidelines
OSHA regulations require proper gas storage, handling, and workplace safety procedures. NFPA standards specify fire safety requirements for compressed gas installations. ANSI guidelines provide technical specifications for equipment and safety practices. These standards work together to ensure comprehensive workplace safety compliance.
Follow OSHA 29 CFR 1910.253 for welding gas safety requirements
Implement NFPA 51 and NFPA 55 standards for gas storage facilities
Use ANSI Z49.1 safety standards for welding and cutting operations
Maintain documentation proving compliance with all applicable regulatory requirements
Training Requirements for Gas Handling
All personnel handling welding gases must receive proper safety training and certification. Training covers gas properties, hazards, emergency procedures, and proper handling techniques. Regular refresher training ensures workers maintain current knowledge of safety procedures. Specialized training may be required for certain hazardous gases.
Provide initial safety training before allowing gas handling responsibilities
Document all training with certificates and maintain current training records
Include emergency response procedures in all gas handling training programs
Require additional training for personnel handling specialty or hazardous gases
Labeling and Documentation
Proper labeling identifies gas contents, hazards, and handling requirements for safety. Maintain accurate documentation of gas inventories, usage rates, and safety inspections. Emergency contact information must be readily available in gas storage areas. Safety data sheets for all gases must be accessible to workers.
Use proper hazard communication labels on all gas cylinders and equipment
Maintain current safety data sheets for every gas type in facility
Document regular safety inspections and equipment maintenance activities performed
Post emergency procedures and contact information in all gas storage areas
Cost of Welding Gases
Price Comparison: Argon, CO₂, Helium
Carbon dioxide represents the most economical shielding gas option for general welding applications. A standard cylinder typically costs 50-70% less than equivalent argon cylinder fills. CO2's abundance and simple production methods keep prices consistently low across markets. However, the gas creates more spatter requiring additional cleanup time and costs.
Argon costs significantly more than CO2 but offers superior weld quality characteristics. Prices vary by region but generally run 2-3 times higher than CO2. The gas requires complex separation from air which increases production costs. Most welders accept the higher cost for improved arc stability and appearance.
Helium commands premium pricing due to limited global supply and complex extraction processes. Costs can reach 5-10 times that of argon for equivalent cylinder volumes. The gas provides unique benefits for specific applications justifying the expense. Many shops reserve helium for critical projects requiring its special properties.
Buying vs Renting Gas Cylinders
Purchasing cylinders requires significant upfront investment but eliminates ongoing rental fees. Ownership makes sense for high-volume users who maintain consistent gas consumption. Buyers assume responsibility for cylinder testing, maintenance, and regulatory compliance requirements. This approach works best for established shops with predictable welding schedules.
Renting provides lower initial costs and eliminates cylinder maintenance responsibilities completely. Monthly rental fees typically range from $8-15 per cylinder depending on size. Rental companies handle testing, maintenance, and regulatory compliance for their cylinder fleets. This option suits shops with variable welding volumes or limited storage.
The break-even point usually occurs around 12-18 months of regular usage. Calculate total costs including delivery, testing, and storage when comparing options. Many shops start with rentals and transition to ownership as volumes increase.
Refill Costs and Exchange Programs
Cylinder refills typically cost 30-50% less than exchange programs for equivalent gas. Refilling allows you to keep your specific cylinder and track its history. However, refills require waiting time and may not be available at all locations. Some specialty gases only come through refill services from certified suppliers.
Exchange programs offer immediate cylinder swaps but at higher per-unit costs. These programs work well for busy shops requiring consistent gas availability. Exchange cylinders may vary in age and condition compared to owned cylinders. Most major suppliers offer exchange programs for common gases like argon and CO2.
Consider your shop's workflow and downtime tolerance when choosing between options. Emergency availability often justifies the higher cost of exchange programs. Many welders use exchanges for backup supply while relying on refills.
Welding Gas vs Flux Core Welding: Key Differences
Flux Core (FCAW) Basics
Self-shielding vs Dual-shielding : Self-shielded flux core (FCAW-S) creates its own protective atmosphere through flux decomposition. Dual-shield flux core (FCAW-G) uses both flux and external shielding gas for enhanced protection.
No External Gas Required for FCAW-S : Self-shielded electrodes eliminate gas cylinders, regulators, and hoses from the setup. This reduces equipment costs and increases portability for field welding applications.
Gas-assisted FCAW-G for Higher Quality : Dual-shield process combines flux protection with argon-CO2 gas mixtures. This combination produces superior weld quality with better mechanical properties than self-shielded versions.
Welding Gas Advantages Over Flux Core
Cleaner Welds : Gas-shielded welding produces minimal slag requiring less post-weld cleanup time. The absence of flux eliminates slag inclusions that can weaken finished welds.
Better for Thin Materials : Precise gas control enables welding on materials as thin as 24-gauge steel. Flux core typically requires thicker materials due to higher heat input characteristics.
Control Over Bead Profile : Gas selection allows welders to customize penetration, appearance, and mechanical properties. This flexibility helps optimize welds for specific application requirements and quality standards.
Common Questions About Welding Gases
Can I use the same gas for all welding processes?
No, different welding processes require specific gas types for optimal performance. TIG welding typically uses pure argon while MIG welding may use various mixtures. Always consult welding procedure specifications to ensure proper gas selection for each application.
How long do welding gas cylinders last?
Cylinder duration depends on gas flow rate, welding time, and cylinder size. A standard 80 cubic foot argon cylinder typically provides 8-12 hours of welding. Higher flow rates and longer arc-on times reduce cylinder life significantly.
What happens if I use the wrong welding gas?
Wrong gas selection can cause poor weld quality, porosity, or complete weld failure. Using active gases on aluminum creates severe oxidation and weak joints. Always verify gas compatibility with base materials before beginning welding operations.
Is it safe to transport welding gas cylinders in vehicles?
Yes, but follow specific transportation safety requirements for compressed gas cylinders. Secure cylinders upright, ensure adequate ventilation, and never transport in enclosed passenger compartments. Check local regulations for any additional transportation restrictions or requirements.
How do I know when my gas cylinder is empty?
Monitor the pressure gauge on your regulator during welding operations regularly. Most cylinders are considered empty when pressure drops below 50-100 PSI. Inconsistent arc characteristics or visible contamination may also indicate low gas supply.
Conclusion
Welding gases play a fundamental role in producing high-quality welds across diverse applications. Understanding different gas types, properties, and applications helps welders make informed decisions. Proper gas selection directly impacts weld strength, appearance, and overall project success.
Safety remains the top priority when handling, storing, and using welding gases. Following established guidelines protects workers and ensures regulatory compliance in all operations. The investment in proper gas selection and safety practices pays dividends through improved weld quality and reduced rework costs.
