Welding cracks pose serious threats to the quality and safety of welded structures. These defects can appear during or after the welding process. They create weak points that may lead to sudden structural failures.
Understanding welding cracks is crucial for maintaining high-quality welding standards in construction. When cracks develop, they can spread quickly through the welded joint. This spreading can cause expensive repairs and dangerous safety risks in buildings or bridges.
The impact of welding cracks extends beyond immediate structural concerns to long-term reliability. Even small cracks can grow larger under stress and normal use. Regular inspections and proper welding techniques help prevent these costly and dangerous problems.

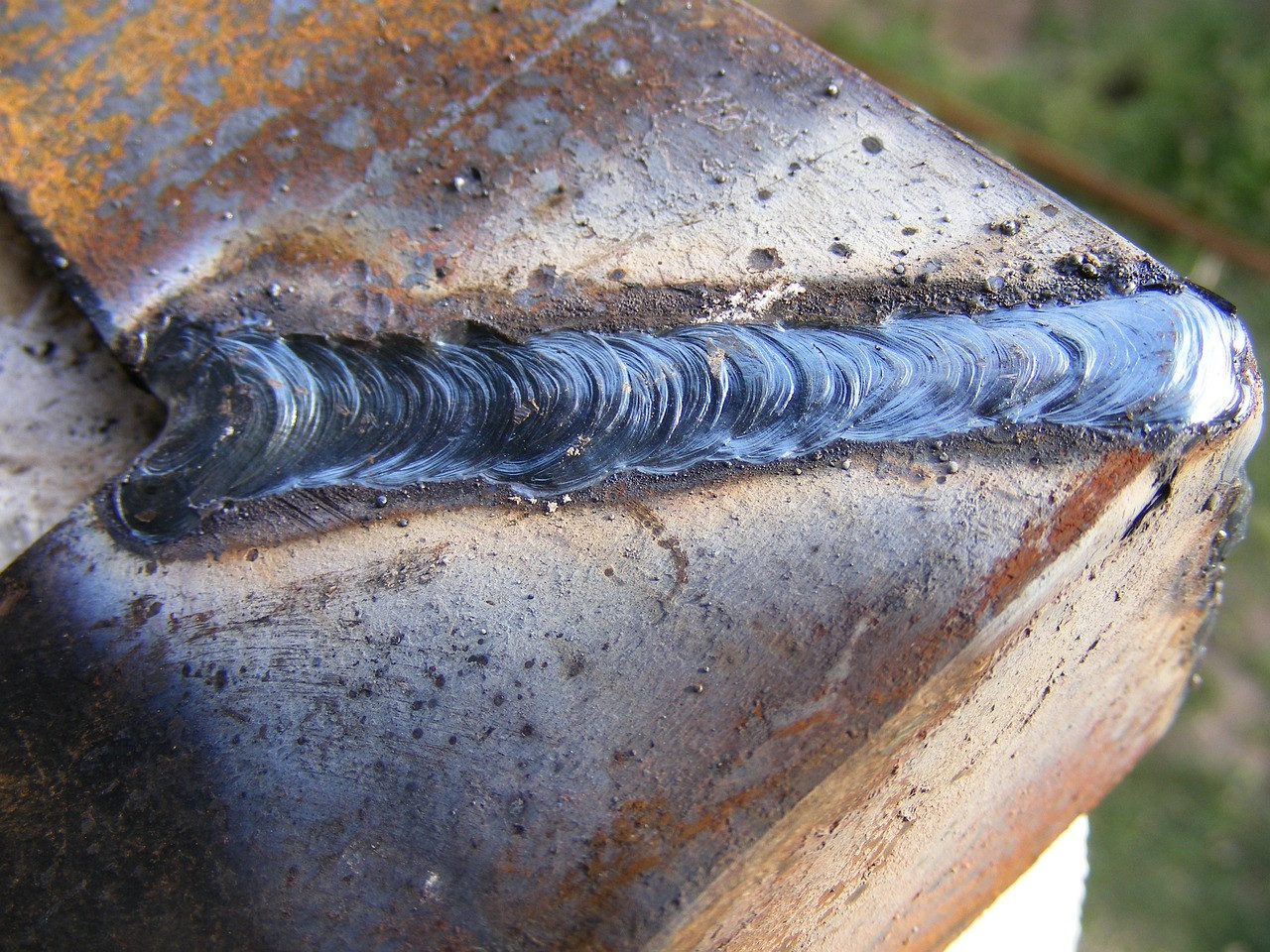

What Are Welding Cracks?
Welding cracks are splits or breaks that form in or around a welded joint. They can appear on the surface or deep within the weld metal. These defects happen when the metal cannot handle stress during cooling.
Unlike other welding problems like porosity or slag inclusion, cracks create sharp divisions. These sharp breaks run through the metal in clear lines or patterns. They often start small but can spread across the entire welded area.
The formation of cracks typically occurs due to several factors working together. Temperature changes during welding create stress in the metal. When this stress exceeds the metal's strength, cracks begin to form. The metal's chemical makeup and welding conditions also play important roles.
Types of Welding Cracks
Hot Welding Cracks
Hot welding cracks form when the weld metal is still at high temperatures. These cracks appear during the cooling and solidification process. They often start at temperatures close to the metal's melting point.
These cracks develop due to shrinkage stresses and material constraints during cooling. Different cooling rates between the weld metal and base material create tension. Hot cracks usually form quickly and can be seen right after welding.
Solidification Cracks
Solidification cracks form as the molten weld pool transforms into solid metal. The outer edges of the weld solidify first, creating constraints. This restriction prevents the center from shrinking properly during cooling.
Metals with wide solidification ranges face higher risks of these cracks. High levels of carbon and sulfur in the material increase cracking possibilities. The temperature difference between surface and center creates significant internal stresses.
Fast welding speeds can increase the likelihood of solidification cracking problems. Careful selection of filler metals and proper joint design prevent these issues. Regular inspection during welding helps catch these problems early.
Liquation Cracks
Liquation cracks appear in zones where base metal experiences partial melting. These defects commonly form in areas adjacent to the main weld pool. The intense heat causes selective melting of certain metal components.
The partial melting process weakens the metal's grain boundary structure. These weakened areas fail under cooling stresses, forming distinctive crack patterns. Heat input control and material selection play crucial roles in prevention.
Improper welding parameters often lead to increased liquation cracking risks. Alloys containing elements with low melting points need special attention during welding.
Heat-Affected Zone (HAZ) Cracks
HAZ cracks develop in the base metal area changed by welding heat. This zone experiences significant temperature changes during the welding process. The rapid heating and cooling create strong internal stresses.
Different cooling rates across the heat-affected zone cause uneven shrinkage forces. These forces can exceed the metal's strength and cause cracks. Proper preheating and controlled cooling help prevent HAZ cracks.
High carbon content in base metals increases the risk of HAZ cracking. Using the right welding parameters and heat treatment reduces these problems.
Cold Welding Cracks
Cold welding cracks appear after the weld has completely cooled down. These cracks can form hours or even days after the welding process. They often result from residual stress in the welded joint.
The delayed nature of cold cracks makes them particularly dangerous problems. Regular inspection after welding helps catch these cracks early on. Proper material handling and welding procedures reduce cold cracking risks.
Hydrogen-Induced Cracks (HIC)
Hydrogen cracks form when trapped hydrogen moves through the cooled weld metal. These cracks often start at the root of the weld joint. The trapped hydrogen creates high pressure inside the metal structure.
Moisture in welding materials is the main source of hydrogen problems. High-strength steels are especially vulnerable to hydrogen cracking issues. Proper storage of welding materials helps prevent moisture contamination.
Using low-hydrogen welding processes and materials prevents these cracks. Preheating the base metal and controlling cooling rates reduce cracking risks.
Lamellar Tearing
Lamellar tears occur in base metals with layered internal structures. These cracks form parallel to the metal surface under the weld. They happen when forces pull perpendicular to the layered structure.
High sulfur content in steel makes lamellar tearing more likely. The tears often start at inclusions or weak spots in the metal. Proper joint design and material selection help avoid these problems.
Using cleaner steel grades reduces the risk of lamellar tearing. Advanced testing methods can detect materials prone to this problem.
Reheat Cracks
Reheat cracks develop during post-weld heat treatment of welded joints. These cracks form along grain boundaries in the heat-affected zone. Temperature changes during heat treatment create new stresses.
Certain alloy steels are more susceptible to reheat cracking problems. The cracks often appear during stress relief heat treatment processes. Careful control of heating and cooling rates prevents these cracks.
Other Types of Cracks
Transverse Cracks
Transverse cracks cut across the weld bead at right angles. These defects can begin in either weld metal or heat-affected zones. High longitudinal stresses often cause these perpendicular cracks.
Joint restraint plays a major role in transverse crack formation. These cracks can spread through both weld and base materials. Proper welding sequences help prevent transverse cracking issues.
Regular inspection during welding helps identify early crack formation signs.
Longitudinal Cracks
Longitudinal cracks extend along the weld's length direction. Surface or internal cracks can form parallel to the weld. High cooling stresses often trigger these linear defects.
Poor joint fit-up increases the risk of longitudinal cracking. Small cracks can grow larger under continued service stress. Proper edge preparation helps prevent these linear defects.
Regular quality control checks help identify longitudinal crack formation early.
Crater Cracks
Crater cracks form in the final weld pool depression. These star-shaped cracks appear when welding stops too quickly. The rapid cooling creates high stress in crater areas.
Improper arc termination technique leads to crater crack formation. These surface defects can spread into the main weld body. Good crater filling practices prevent these common defects.
Regular inspection after welding helps identify crater cracks before problems grow.
Common Causes of Welding Cracks
Material-Related Causes
High-Carbon and Alloy Steels
High-carbon and alloy steels create special challenges in welding operations. These metals form hard structures when cooled quickly after welding. The hardened areas become brittle and prone to cracking.
The carbon content makes these steels sensitive to rapid temperature changes. Higher alloy content can lead to uneven cooling rates throughout. Proper preheating helps reduce the risk of crack formation.
Special welding procedures must be followed when working with these materials.
Material Impurities
Impurities in welding materials can lead to serious crack formation issues. Sulfur and phosphorus create weak spots in the weld structure. Hydrogen trapped in materials causes internal pressure and cracking.
Clean materials and proper storage prevent contamination before welding starts. Regular material testing helps identify potential impurity problems early. Quality control measures ensure materials meet required purity standards.
Material Compatibility Issues
Poor matching between filler and base metals causes serious welding problems. Different melting points can create stress during cooling phases. Thermal expansion differences lead to internal forces.
Proper material selection ensures good compatibility between all metals used. Engineering standards help guide correct material combinations for specific applications. Regular testing confirms that chosen materials work well together.
Process-Related Causes
Improper Heat Input
Wrong heat levels during welding create various crack formation risks. Too much heat can cause metal distortion and internal stress. Uneven heating leads to different cooling rates across the weld.
Careful control of welding parameters ensures proper heat distribution. Temperature monitoring helps maintain correct heat levels throughout welding. Proper techniques prevent excessive or insufficient heat input.
Inadequate Heat Treatment
Poor preheating practices often lead to weld cracking problems. Insufficient post-weld cooling control causes internal stress buildup. Proper temperature maintenance prevents many common cracking issues.
Following correct heating and cooling procedures prevents crack formation. Temperature monitoring equipment helps maintain proper heat treatment cycles. Regular inspection during heat treatment catches potential problems early.
Incorrect Welding Techniques
Wrong welding settings or methods often cause crack formation problems. Poor torch control leads to uneven heat distribution in welds. Incorrect travel speeds create various weld quality issues.
Proper training ensures welders understand correct technique requirements. Regular practice helps maintain good welding skills and habits. Quality control measures confirm proper welding techniques are used.
Environmental Causes
High Humidity Conditions
High moisture levels in air affect weld quality significantly. Humidity can introduce hydrogen into the welding process. Moisture on metal surfaces leads to various welding problems.
Climate control in welding areas helps maintain proper conditions. Dehumidification equipment reduces moisture-related welding problems. Regular environmental monitoring ensures suitable welding conditions.
Temperature Fluctuations
Sudden temperature changes create stress in welding joints. Cold drafts can cause rapid cooling and crack formation. Extreme temperature variations affect weld quality significantly.
Proper environmental controls maintain stable welding conditions. Shield gases protect welds from temperature fluctuations during cooling. Regular monitoring helps prevent unexpected temperature changes during welding.
Repair Methods for Welding Cracks
Grinding and Rewelding Process
Grinding out cracks serves as the first step in weld repair procedures. Skilled welders use specialized grinding tools to remove the damaged area completely. The removal process must extend beyond the visible crack ends for safety.
The grinding operation creates a clean surface for the new weld application. Proper preparation includes inspecting the ground area for remaining crack traces. Many welders use dye penetrant testing to ensure complete crack removal.
Professional welders follow strict procedures when preparing the ground area for rewelding. The new weld joint requires careful design to prevent future crack formation. Regular quality checks during grinding help ensure proper repair preparation.
Preheating Techniques
Preheating plays a crucial role in successful crack repair operations. The process involves heating the metal around the repair area evenly. Proper temperature control prevents new cracks from forming during repairs.
Welders use various heating methods depending on the metal type involved. Temperature monitoring equipment ensures consistent heat throughout the repair zone. The preheating process helps reduce internal stresses during repair welding.
Many repair jobs require specific temperature ranges for optimal results. Regular temperature checks help maintain proper preheating conditions during repairs. Professional welders document all preheating procedures for quality control purposes.
Advanced Welding Repair Techniques
TIG and MIG welding offer precise control for crack repair operations. These methods provide better heat control than traditional welding processes. Modern welding equipment includes advanced features for repair work.
TIG welding works well for precise repairs on thin materials. MIG welding offers faster repair speeds on thicker metal sections. Both methods require skilled operators for successful crack repairs.
Professional welders choose repair methods based on material and crack types. Proper equipment settings ensure good penetration in repair welds. Regular practice helps welders maintain their advanced repair skills.
Inspection and Testing
Visual Inspection Methods
Visual inspection provides the first line of defense against welding cracks. Trained inspectors look for surface irregularities and discoloration patterns. Good lighting and magnification tools help identify potential problems.
Inspectors follow systematic procedures when checking welds for cracks. Surface preparation often includes cleaning to remove any blocking substances. Regular documentation helps track crack formation patterns over time.
Professional inspectors use various tools to enhance visual inspection accuracy. Digital cameras help record findings for future reference and analysis. Many companies require regular visual inspections as part of maintenance.
Ultrasonic Testing Procedures
Ultrasonic testing reveals hidden cracks inside welded joints and materials. Special equipment sends sound waves through the metal to detect flaws. Modern ultrasonic devices provide detailed images of internal structures.
Trained technicians interpret ultrasonic signals to locate potential problems. The testing process covers both the weld and surrounding material areas. Regular calibration ensures accurate results from ultrasonic equipment.
Many industries rely on ultrasonic testing for critical weld inspections. The method helps identify problems before they cause serious failures. Professional training helps technicians maintain high testing standards.
Radiographic Testing Methods
Radiographic testing uses x-rays to examine welds for internal defects. The process creates detailed images of the weld's internal structure. Modern equipment provides instant digital results for quick analysis.
Certified technicians follow strict safety procedures during radiographic testing. The images help identify various types of internal weld defects. Regular equipment maintenance ensures consistent testing quality.
Many codes require radiographic testing for critical welding applications. The method provides permanent records of weld quality over time. Professional interpretation helps identify potential problems early.
Importance of Regular Inspections
Regular inspection programs help prevent major welding failures in structures. Early detection allows repairs before small cracks become serious problems. Systematic inspection schedules ensure consistent monitoring of all welds.
Professional inspection teams use various methods to check weld quality. Documentation helps track changes in weld conditions over time. Many companies base maintenance schedules on inspection results.
Regular inspections save money by preventing unexpected weld failures. The process helps maintain safety in welded structures and equipment. Professional training ensures high-quality inspection procedures at all times.
Additional Welding Defects and Their Solutions
Incomplete Fusion
Incomplete fusion occurs when the weld metal does not properly bond with the base metal. This defect is usually caused by poor heat penetration or improper welding technique. Insufficient heat prevents the metal layers from merging, leading to weak welds. Another reason could be improper joint preparation or the presence of contaminants on the surface.
To resolve this issue, ensure proper cleaning of the base metal before welding. Adjust the heat settings on the welding equipment to achieve deeper penetration. Use the correct welding technique, such as maintaining the right travel speed and electrode angle. Proper training and practice can help in avoiding this defect altogether.
Porosity
Porosity occurs when gas bubbles are trapped in the weld metal, causing weak spots. The primary reasons for this defect are contamination in the base metal, improper shielding gas flow, or using damp electrodes.
To prevent porosity, always clean the base metal thoroughly to remove oil, grease, or dirt. Use high-quality shielding gas and ensure its flow is consistent. If using flux-coated electrodes, store them in a dry place to avoid moisture contamination. Adhering to these practices ensures a strong, defect-free weld.
Overlap
Overlap happens when excess weld material spills over the base metal without fusing properly. This issue often arises from using excessive heat input or an improper travel angle.
To fix this, reduce the heat input and adjust the welding angle to allow better control. Maintain a steady hand and proper travel speed to prevent weld metal from spilling over. Regular practice will help you master the technique and avoid overlaps.
Undercut
Undercut defects occur when the base metal melts away excessively at the weld edge, leaving a groove. This usually results from excessive heat or poor torch control.
To prevent undercut, reduce the heat input by adjusting the welding parameters. Use a proper torch angle to ensure even heat distribution. Consistent motion and controlled speed also play a key role in avoiding this issue.
Crater Defects
Crater defects are caused when a welder abruptly stops the welding process, leaving a hollow or weak spot at the end of the weld.
To address this, gradually taper off the heat when finishing the weld. Use a backfill technique to ensure the weld pool solidifies evenly. Proper finishing not only prevents crater defects but also enhances the weld’s overall strength and appearance.
How to Minimize Welding Cracks as a Beginner
Importance of Proper Training and Skill Development
Proper training is essential for beginners to understand welding techniques and avoid common mistakes. Training equips welders with knowledge about heat control, material preparation, and safety protocols. This minimizes the chances of cracks and ensures high-quality welds.
Investing time in hands-on practice during training sessions builds confidence and improves precision. Beginners should also familiarize themselves with different welding processes, such as MIG, TIG, and stick welding. A solid foundation in welding techniques lays the groundwork for successful outcomes.
Investing in Quality Tools and Materials
Using high-quality welding tools and materials significantly reduces the likelihood of defects. Cheap or low-grade equipment often leads to inconsistent welds and poor results. Reliable tools ensure precise heat application and proper joint alignment.
Similarly, choosing quality materials for welding ensures compatibility and strength. Regularly maintain your equipment to keep it in optimal working condition. A good investment in tools and materials pays off with better performance and durability.
Regular Practice to Master Welding Techniques
Practice is crucial for mastering the art of welding. Frequent practice allows beginners to improve their hand control, heat management, and technique. This minimizes common errors like overheating or poor alignment, reducing the risk of cracks.
Begin by working on simple projects to build your confidence. Gradually move to more complex tasks as your skills improve. Consistent practice refines your abilities, making it easier to produce flawless welds.
Seeking Guidance from Experienced Welders
Experienced welders can provide valuable tips and tricks to avoid welding cracks. Learning from their expertise helps beginners understand complex welding techniques more efficiently.
Join welding communities or attend workshops to interact with skilled professionals. Their insights can accelerate your learning curve and help you achieve better results in less time.
Frequently Asked Questions About Welding Cracks
What is the most common type of welding crack?
The most common type of welding crack is a hot crack. It occurs when the weld metal solidifies too quickly due to excessive heat. This usually happens during high-speed welding or when using improper welding techniques.
How can I identify a welding crack?
Welding cracks can be identified through visual inspection or using advanced techniques like ultrasonic testing. Look for visible fissures, irregularities, or gaps along the weld seam.
Can welding cracks be completely avoided?
While welding cracks cannot be eliminated entirely, proper techniques and preventive measures can significantly reduce their occurrence. Regular practice and using the right tools are essential to minimize defects.
What tools are necessary to prevent welding defects?
Essential tools include a high-quality welding machine, protective gear, and cleaning equipment. Properly calibrated equipment helps maintain consistency, while cleaning tools ensure contaminant-free surfaces.
Are certain materials more prone to cracking?
Yes, materials like cast iron and high-carbon steel are more prone to cracking due to their brittleness. Preheating and using the right filler material can reduce the risk of cracks in these materials.
Conclusion
Welding cracks and defects can compromise the strength and appearance of welded structures. Understanding the causes of defects like incomplete fusion, porosity, and undercut is essential for creating durable welds. Proper training, high-quality tools, and consistent practice play a crucial role in preventing these issues.
Addressing welding defects proactively ensures high-quality results while enhancing safety and durability. By applying these techniques, both beginners and experienced welders can achieve flawless, long-lasting welds.
