Have you ever wondered why some welds look perfect while others fail? The secret lies in proper welder settings. Getting the right settings on your welding machine is like finding the perfect recipe for cooking. When welders use correct amperage, voltage, and wire feed speed, they create strong and clean welds. These settings control how much heat goes into the metal and how the filler material melts.
The wrong settings can lead to weak welds, wasted materials, and costly mistakes. Too much heat can burn through the metal, while too little heat creates weak bonds. Good settings also help welders work faster and use less power and materials. In this article, we will explore everything about welder settings for different welding processes, from MIG to TIG and stick welding.
What is Welder Settings?

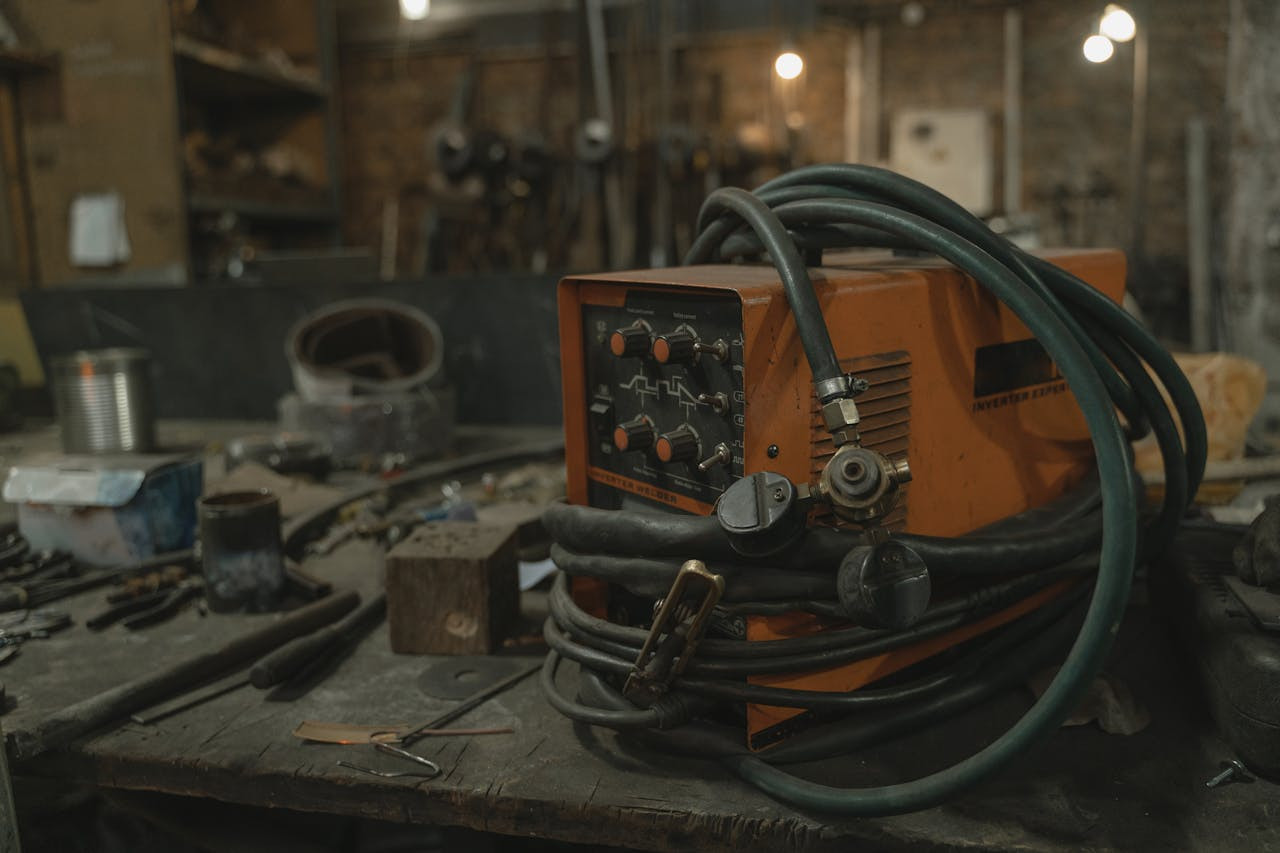

Welder settings are the adjustable parameters on a welding machine that control the welding process. These settings include voltage, amperage, wire feed speed, and polarity selection. Think of them as the control panel that helps you manage how your welder works. Every welding job needs different settings based on the metal type and thickness.
The main purpose of welder settings is to create the perfect balance of heat and material flow. Voltage controls the arc length and width of the weld bead. Amperage determines how deep the weld penetrates into the metal. Wire feed speed affects how much filler metal goes into the weld. Together, these settings work like a team to create strong welds.
Each type of welding process has its own unique set of settings to master. MIG welding needs proper wire speed and voltage settings for smooth metal transfer. TIG welding requires precise amperage control for detailed work on thin metals. Stick welding depends on correct amperage settings to prevent electrode sticking. Understanding these settings helps welders choose the right combination for each project.
Fundamental Welding Parameters
Amperage (Current)
Amperage is the primary heat control that determines how deep your weld penetrates the metal. According to the American Welding Society (AWS), selecting the right amperage is crucial for weld quality. The general rule is to use 1 amp for every 0.001 inch of metal thickness. This setting controls how much electrical current flows through the welding circuit to melt the metal.
Too high amperage creates serious problems that can ruin your welding project completely. Excessive heat causes burn-through, warping, and creates large amounts of spatter. The AWS handbook warns that high amperage can also lead to cracking in thick materials. Experienced welders often start with lower amperage and adjust upward as needed.
When the amperage is too low, the weld lacks proper penetration into the base metal. This creates weak joints that may fail under stress or load. Professional welders recommend performing test welds on scrap material to find the perfect amperage setting.
Voltage
Welding voltage controls the length and stability of the arc between electrode and metal. Higher voltage creates a longer arc that produces wider, flatter weld beads with less penetration. Lower voltage settings result in shorter arcs and narrower weld beads with deeper penetration. Industry experts recommend starting at the lower end of voltage range for any new project. The right voltage helps achieve proper fusion while minimizing spatter and other defects.
Travel Speed
The speed at which you move the welding torch greatly impacts weld quality and strength. According to welding research by the AWS, proper travel speed ensures even heat distribution. Most welders maintain a speed that creates a weld pool about 1.5 times wider than the electrode.
Maintaining consistent travel speed requires practice and careful attention to the weld pool. Moving too fast leads to lack of fusion and weak, stringy welds. Going too slow causes excessive heat input that can damage thin materials. Professional welders suggest watching how the molten pool flows to adjust speed correctly.
Electrode Angle
The angle between your electrode and workpiece affects penetration and bead shape significantly. This angle helps direct the arc force properly into the joint being welded. Getting the wrong electrode angle can create serious welding defects and weak joints. Professional welders stress the importance of consistent angle throughout the entire weld. Many welding schools teach students to practice maintaining proper angles using simple guides first.
Shielding Gas Flow Rate
Shielding gas protects your weld from atmospheric contamination during the welding process. The AWS recommends flow rates between 15-20 cubic feet per hour for most applications. This range provides adequate coverage while preventing turbulence in the gas shield.
Setting the right flow rate depends on several factors including joint type and location. According to welding experts, indoor welding typically requires lower flow rates than outdoor work. Too little gas leads to porosity and oxidation that weakens the weld significantly.
Wind and drafts can disturb the shielding gas coverage during welding operations. Professional fabrication shops often use wind screens or increase flow rates to compensate. The AWS suggests using a flow meter to ensure proper gas coverage throughout the weld.
Metal Inert Gas (MIG) Welder Settings
Wire Feed Speed
Wire feed speed directly controls how much filler metal enters your weld pool. The speed works together with amperage to create the perfect balance for strong welds. When you increase wire feed speed, you also need more amperage to melt the wire properly.
Different metal thicknesses need different wire feed speeds for the best results. Thicker metals generally need slower wire speeds and higher amperage settings. Many welders start with 200-250 inches per minute for 1/8 inch mild steel. Finding the right speed often requires testing on scrap metal first.
Voltage Settings
Voltage in MIG welding affects how the wire melts and transfers to the base metal. Most welding projects need between 18-26 volts, depending on the metal thickness. Lower voltages work better for thin metals, while thicker materials need higher settings.
The key is matching voltage to your wire diameter and material type. Proper voltage creates a smooth, steady arc with minimal spatter. Too much voltage causes excessive spatter, while too little leads to stubbing and poor fusion.
Inductance Control
Inductance controls how quickly the current rises and falls during the welding process. This setting helps manage the arc characteristics and weld pool behavior. Higher inductance creates a softer arc with less spatter but reduced penetration.
Lower inductance produces a stiffer arc that's better for thicker materials. Modern MIG welders let you fine-tune inductance for different welding positions and materials. The right setting helps achieve smoother starts and stops in your welds.
Shielding Gas Selection
MIG welding uses different gas mixtures to protect the weld pool from contamination. Pure CO2 provides deep penetration but creates more spatter. Argon/CO2 mixtures offer better arc stability and cleaner welds.
The most common mixture contains 75% argon and 25% CO2 for general steel welding. This balance provides good penetration while minimizing spatter and maintaining arc stability. Some applications might need different mixtures based on material and thickness.
Polarity
MIG welding typically uses Direct Current Electrode Positive (DCEP) for most applications. This polarity creates deeper penetration and better cleaning action in the weld pool. The wire becomes positive while the workpiece stays negative.
DCEP works best for most steel and aluminum MIG welding tasks. The positive electrode helps break down surface oxides during welding. This setting provides better fusion and stronger welds in most situations.
TIG Welder Settings
Amperage Control
Precise amperage control is the heart of TIG welding quality and accuracy. Many welders prefer foot pedals because they offer hands-free amperage adjustment while welding. The pedal works like a car's gas pedal, giving you instant control over heat input.
Hand controls suit welding positions where using a foot pedal isn't practical. Most TIG welders use an initial setting of 1 amp per thousandth of material thickness. The ability to adjust amperage during welding helps prevent burn-through on thin materials.
The advantage of variable amperage control shows when welding different thicknesses. Starting with higher amperage creates good penetration, then reducing it prevents overheating. Many welders practice this control technique on scrap material before tackling important projects.
AC/DC Selection
AC (Alternating Current) and DC (Direct Current) serve different purposes in TIG welding. DC is the primary choice for most metals like steel, stainless steel, and copper. It provides stable arc characteristics and deep penetration for these materials.
AC works best for aluminum and magnesium due to its cleaning action. The alternating current breaks down oxide layers that form on these metals. Modern TIG machines let welders adjust the AC balance for different cleaning effects.
Pulse Settings
Pulse welding alternates between high and low amperage at specific frequencies. This technique helps control heat input and weld pool behavior effectively. The high amperage provides penetration while low amperage allows cooling.
Many welders use pulsing for thin materials or challenging positions. A typical pulse setting might use 1-2 pulses per second for general work. The technique requires practice but offers better control over the weld pool.
Electrode Type and Size
The tungsten electrode carries the welding current and needs careful selection. Pure tungsten works for AC aluminum welding, while thoriated tungsten suits DC applications. The electrode diameter should match your welding current range.
Shielding Gas Type and Flow Rate
Argon is the most common shielding gas for TIG welding most metals. The flow rate typically ranges from 15-20 cubic feet per hour for indoor welding. Different metals might need special gas mixtures for better arc stability.
Stick Welding Settings
Electrode Selection
Choosing the right stick electrode depends on several key factors in your welding project. Different electrodes suit various metal types, positions, and joint configurations. The AWS classification system helps welders identify the right electrode for each job.
Most welders start with E6010 or E7018 electrodes for general steel welding. These electrodes offer good penetration and work in many positions. The coating type affects weld characteristics and position capability significantly.
A common rule involves matching the electrode diameter to material thickness. Thicker materials need larger diameter electrodes and higher amperage settings. Many welders keep several electrode types on hand for different welding situations.
Amperage Settings
Proper amperage ensures good fusion while preventing electrode sticking or burnthrough. The general rule suggests multiplying the electrode diameter by 40 for mild steel. For example, a 1/8-inch electrode typically needs around 90-130 amps.
Setting amperage too high causes excessive spatter and electrode overheating. Too low amperage makes striking and maintaining an arc difficult. Most welders start at the lower end of the recommended range and adjust up as needed.
Arc Length
The correct arc length equals the diameter of the electrode's metal core. Maintaining consistent arc length ensures even heat distribution and penetration. Most beginners tend to hold too long an arc, which reduces weld quality.
Experienced welders watch the arc sound and appearance to maintain proper length. A good arc makes a sharp, crackling sound like bacon frying. The arc should form a slight crater with even ripples in the weld pool.
Polarity
Most stick welding uses Direct Current Electrode Positive (DCEP) for better penetration. DCEP creates deeper penetration and helps remove surface contaminants during welding. Some electrodes work better with Direct Current Electrode Negative (DCEN) for specific applications.
DCEP concentrates about two-thirds of the heat in the base metal. This heat concentration helps achieve good fusion and penetration. DCEN might suit thin materials or special electrodes that need less penetration.
Material-Specific Considerations for Welder Settings
Steel
Welding steel requires specific settings based on its type and thickness. Mild steel is the most forgiving and commonly welded material in fabrication. For MIG welding mild steel, most welders use 75/25 argon/CO2 gas mixture. The voltage typically ranges between 18-26 volts depending on thickness.
Stainless steel needs different settings to prevent chromium oxidation and maintain corrosion resistance. Pure argon or tri-mix gases work best for stainless steel welding. Lower heat input helps prevent warping and maintain the material's properties. Most welders reduce their normal amperage by 10-15% when working with stainless steel.
When TIG welding steel, DCEN polarity provides the best results for both types. Mild steel generally needs 1 amp per thousandth of thickness as a starting point. Stainless steel often requires slightly lower amperage to prevent excessive heat buildup.
Aluminum
Aluminum welding presents unique challenges due to its high thermal conductivity and oxide layer. AC current is essential for aluminum welding to break down the oxide layer. Most welders set AC balance between 65-75% electrode negative for good cleaning action.
The frequency setting affects arc stability and weld pool control in aluminum. Higher frequencies (120-200 Hz) create a tighter arc cone and better directional control. Lower frequencies provide deeper penetration but might cause more heat spread. Aluminum needs higher wire feed speeds in MIG welding due to its lower melting point.
Modern welding machines often have specific aluminum settings or programs. These help manage the higher heat input needed for good fusion. Pure argon shielding gas works best for both MIG and TIG welding aluminum. Many welders also increase their gas flow rates by 20-30% for better protection.
Exotic Metals
Exotic metals like titanium and magnesium require special attention to settings and environment. Titanium needs complete gas coverage to prevent contamination during welding. Most fabricators use pure argon with extra gas coverage through trailing shields. The amperage settings stay lower than steel to prevent overheating.
Magnesium welding shares some similarities with aluminum but needs even more care. AC welding works best for magnesium with a balanced or slightly electrode positive setting. The material's low melting point requires careful heat control and faster travel speeds. Pure argon shielding gas provides the best protection for magnesium welds.
For both materials, cleanliness becomes extremely important for good welds. The settings should focus on minimizing heat input while maintaining fusion. Many shops use specialized purge chambers or trailing shields for these metals. Starting with lower heat and increasing gradually helps prevent material damage.
Environmental Factors Affecting Settings
I'll help create detailed explanations for each section, focusing on practical information and real-world applications.
Ambient Temperature
Environmental temperature significantly affects welding performance and required machine settings. Cold temperatures below 60°F make the metal cool faster and may require higher amperage. Preheating becomes necessary when working with thick materials in cold conditions. Many welders increase their heat input by 10-15% during cold weather.
Warm environments above 90°F create different challenges for welding operations. Hot materials need lower heat input to prevent burn-through and warping. Welders often reduce their normal amperage settings by 5-10% in hot conditions. The metal's cooling rate changes dramatically with ambient temperature variations.
Humidity also plays a crucial role in determining proper welding parameters. High humidity can cause hydrogen inclusion in welds if proper storage isn't maintained. Many shops monitor temperature and humidity levels to maintain consistent weld quality.
Wind and Drafts
Wind creates serious problems for welding by disturbing the shielding gas coverage. Even light breezes can blow away the protective gas shield around your weld. Many welders increase their gas flow rate by 25-50% when working in windy conditions.
Indoor drafts from fans or HVAC systems can affect welding quality. Using welding screens or barriers helps protect the weld area from air movement. Some welders adjust their travel angle slightly to compensate for persistent drafts.
Professional shops often install wind barriers or welding curtains for outdoor work. These protective measures help maintain consistent gas coverage during welding. Proper shielding becomes even more critical when working with sensitive materials.
Material Cleanliness
Surface preparation directly impacts weld quality and required machine settings. Clean metal surfaces need less heat input for good fusion and penetration. Removing rust, paint, oil, and other contaminants improves weld quality significantly.
Dirty surfaces often require higher heat settings to achieve proper fusion. This extra heat can cause warping or burn-through in thinner materials. Many welders adjust their travel speed slower on contaminated surfaces.
The type of contamination affects how you should adjust your settings. Mill scale needs different preparation than oil or paint residue. Professional welders always clean their materials thoroughly before adjusting machine settings.
Troubleshooting and Fine-Tuning
Common Welding Defects
Welding defects can occur from various setting and technique issues during the process. Porosity often results from inadequate gas coverage or contaminated surfaces. Undercut happens when travel speed is too fast or voltage is too high.
Lack of fusion typically occurs from insufficient heat input or poor joint preparation. Common signs include incomplete bonding between the weld and base metal. Cold lap defects show up as weld metal that sits on top without proper fusion.
Experienced welders check their work regularly for common defect indicators. Spatter usually means voltage or wire feed speed needs adjustment. Many defects become visible only after the weld cools completely.
Adjusting Settings to Correct Defects
Correcting welding defects requires systematic adjustment of machine settings and technique. Start by changing one parameter at a time to identify the root cause. Increasing voltage often helps fix cold lap issues in MIG welding.
Different defects need specific setting adjustments to resolve the problem. Porosity might need higher gas flow rates or better surface cleaning. Too much penetration requires reducing amperage or increasing travel speed.
Professional welders keep detailed records of setting adjustments and results. This documentation helps prevent similar problems in future projects. Testing adjustments on scrap material saves time and resources.
Reading and Interpreting Weld Beads
Weld bead appearance provides valuable feedback about machine settings and technique. Good welds show consistent width and height along the entire length. The bead surface should have even ripples without excessive roughness.
Color changes in the heat-affected zone indicate potential setting problems. Proper settings create a uniform appearance without excessive coloring. Many welders use their experience reading beads to make quick adjustments.
Advanced Features in Modern Welders
Synergic Controls
Synergic controls allow welders to adjust multiple settings automatically with a single input. These advanced machines use built-in microprocessors to analyze factors like wire feed speed, voltage, and amperage. When a welder selects a material type and thickness, the machine automatically adjusts the settings to match. This simplifies the welding process especially for beginner welders.
These controls also enhance consistency by maintaining optimal arc characteristics. Traditional welding requires constant adjustments to get the perfect weld, but synergic welders make real-time changes to ensure smooth operation. This feature is particularly useful in MIG and pulse MIG welding, where precise coordination between wire speed and power settings is crucial.
Memory Functions
Modern welders come with memory functions that allow users to save and recall their preferred settings. This feature is helpful for welders who frequently work on similar projects. Instead of manually adjusting the machine each time, they can store settings for different metals, thicknesses, and welding techniques.
Memory functions are particularly beneficial in industrial welding, where production speed and consistency are important. Advanced machines can store multiple presets, enabling welders to switch between different materials quickly. This not only saves time but also ensures repeatable results. With just a push of a button, welders can recall saved configurations, making their workflow smoother and more efficient.
Remote Controls
Remote control features in welding machines allow operators to adjust settings without having to stop work. Foot pedals and hand remotes are common tools used for real-time changes in amperage, voltage, and arc force. This is especially useful in TIG welding, where precise control over heat input is needed.
Takeaway
Welder settings may seem complex, but mastering them leads to better performance and fewer mistakes. Choosing the right settings for different metals and thicknesses ensures durability and precision. This guide covered everything from basic adjustments to advanced machine features that simplify the process. By understanding these settings, you can achieve consistent, high-quality welds every time.
