Welding is a way to join metals by melting them together. It is crucial in building things, making products, and fixing items. Did you know that a single inch of a good weld can support a ton of weight? However, a bad weld can be a weak link, leading to cracks, leaks, or even catastrophic failures.

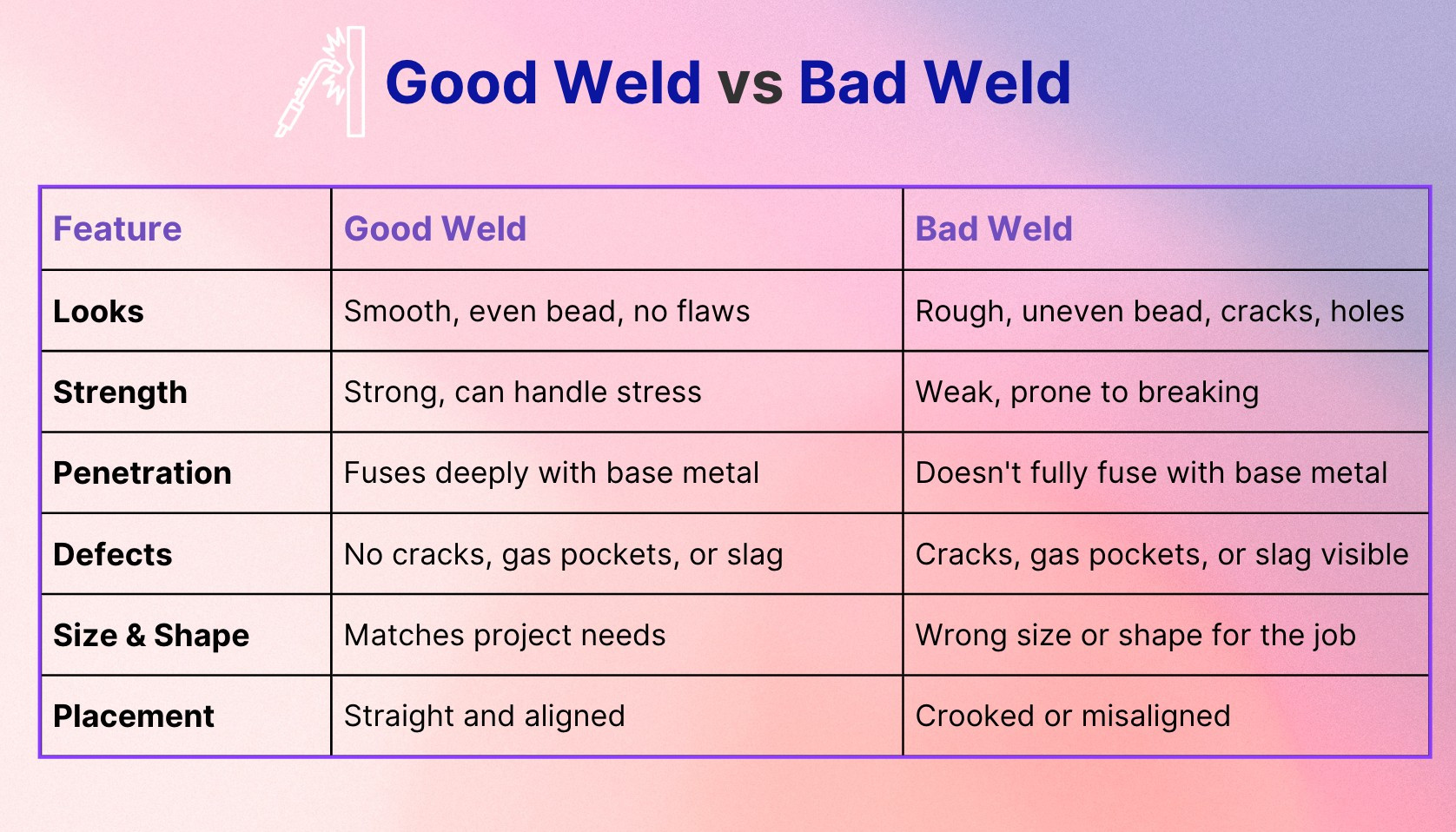

This article will examine good and bad welds. A good weld is solid and smooth, while a bad weld can be weak or ugly. We'll explore what makes a weld good or bad, which can help welders do better work and help people check if a weld is done right. Understanding welds is essential for safety and quality in metalwork. We'll learn about the signs of good and bad welds and why they matter.
Essential Characteristics of a Good Welds
Visual Appearance
1. Consistent Bead Width
A good weld should have the same width throughout its length. This means the weld bead, which is the raised part of the weld, should look even from start to finish. Imagine drawing a straight line with a marker. If the line is the same thickness throughout, it looks neat and professional. That's what we want in a weld. When the width changes a lot, the welder doesn't move at a steady speed or doesn't hold the welding tool correctly. A consistent bead width looks better and suggests the weld is strong and done right.
2. Smooth and Even Surface
A high-quality weld should have a smooth surface without bumps or rough spots. Think of it like icing on a cake - you want it to be flat and even, not lumpy or uneven. It should feel smooth when you run your finger along the weld (when it's cool). This smooth surface isn't just about looks. It shows that the weld was done with skill and care. A smooth weld is less likely to have weak spots or trapped air bubbles. It's also easier to clean and less likely to rust. Welds with rough or uneven surfaces might weaken and fail over time.
3. Proper Weld Reinforcement
Weld reinforcement is the extra metal that sits above the surface of the joined pieces. It's like a small hill or bump along the weld. Good reinforcement makes the weld stronger. But it's tricky - more reinforcement will be needed to add strength, while too much can cause stress in the metal. The right amount depends on the type of weld and the metal being joined. Usually, the reinforcement should be slightly raised and rounded. It shouldn't be too high or too flat. Proper reinforcement shows that the welder added the right amount of filler metal and applied heat correctly.
Penetration
1. Full Penetration vs. Partial Penetration
Penetration refers to how deep the weld goes into the joined metal pieces. Full penetration means the weld goes all the way through the metal. Partial penetration means it only goes partway. Think of it like glueing two pieces of paper. Full penetration is like the glue soaking through both sheets. Partial penetration is like the glue only sticking to the top of the second sheet. Full penetration is usually stronger because it joins the entire metal thickness. But sometimes, partial penetration is enough, depending on what the weld needs to do. The type of penetration needed depends on the job and is often specified in the welding plans.
2. Importance of Proper Fusion
Fusion in welding means how well the weld metal mixes with the base metal. Good fusion is when the weld metal and base metal blend smoothly, with no clear line between them. It's like mixing paint colours - you want them to blend perfectly, not stay separate. Proper fusion is crucial for a strong weld. If fusion is poor, the weld might look okay on the surface but be weak underneath. This can lead to the weld failing when under stress. Good fusion depends on the right heat, the correct welding technique, and the right welding method. Welders need skill and knowledge to achieve good fusion consistently.
Strength and Durability
A good weld needs to be strong and last a long time. Strength means the weld can handle the forces it will face without breaking. Durability means it stays strong over time, even when exposed to heat, cold, or chemicals. A strong, durable weld should be at least as strong as the metal pieces it's joining. To achieve this, welders must choose the right welding method, use the correct filler metal, and apply the right amount of heat. They also need to consider what the welded piece will be used for. For example, a weld on a bridge needs to be stronger than one on a decorative metal fence. Testing can help ensure a weld is strong and durable enough for its purpose.
Absence of Defects
A high-quality weld should be free from defects. Defects are flaws or problems in the weld that can weaken it. Common defects include cracks, porosity (tiny holes), slag inclusions (trapped non-metal materials), and undercut (a groove at the edge of the weld). These defects can happen due to poor technique, wrong settings, or contamination. Even small defects can lead to big problems later. For example, a tiny crack can grow over time and cause the weld to fail. Welders use various methods to check for defects, including visual inspection, X-rays, and ultrasound tests. Preventing defects is crucial for making safe, reliable welds.
Proper Size and Profile
The size and profile of a weld are important for its strength and function. Size refers to how big the weld is, while profile is its shape. The right size ensures the weld is strong enough for its job. If it's too small, it might be weak. If it's too big, it wastes material and can cause distortion. The profile should match what's needed for the job.
Common profiles include flat, convex (curved outward), and concave (curved inward). The right profile helps the weld work properly and look good. For example, a convex profile might be stronger in some cases, while a flat profile might be better for smooth surfaces. Welders need to follow specifications to get the size and profile right.
Correct Placement and Alignment
A good weld must be in the right place and lined up correctly. This means the weld should be exactly where the design calls for it. Imagine building with Lego - if the pieces are lined up right, the structure is strong . The same is true for welding. A weld might need to be stronger if it is off-centre or crooked. It could also cause problems with how the parts fit together or work.
Correct placement and alignment require careful measuring and setup before welding starts. Welders often use clamps, jigs, or other tools to hold parts correctly. Good alignment also makes the finished product look neat and professional.
Weld Woes: The Most Common Welding Defects
Porosity
Porosity occurs when tiny holes or bubbles form in a weld. It's like making pancakes and seeing small bubbles in the batter. These holes can weaken the weld.
There are different types of porosity. Sometimes, you see the holes on the surface; sometimes, they're hidden inside the weld. Porosity often happens when gases get trapped in the weld as it cools. Dirty metal, wrong welding settings, or moisture in the area can cause this. To avoid porosity, welders must clean their work area and use the right techniques.
Lack of Fusion
Lack of fusion occurs when the weld metal doesn't properly join with the base metal. Imagine trying to glue two pieces of paper, but the glue doesn't stick properly in some spots. That's what Lack of fusion is like in welding.
This problem can happen if the welding heat is too low, the welding speed is too fast, or the joint must be prepared correctly. Lack of fusion is dangerous because the weld might look okay on the surface but be weak underneath. To fix this, welders must use the right heat and ensure the metal is clean before welding.
Incomplete Penetration
Incomplete penetration means the weld doesn't penetrate deep enough into the joint. Think of it like digging a hole—if you don't dig deep enough, the hole isn't as strong or useful as it should be.
This often happens when the welding current is too low, the welding speed is too fast, or the joint design is wrong . Incomplete penetration can make the weld much weaker than it should be. To avoid this, welders must follow the right procedures and use enough heat to melt the metal through the joint.
Undercutting
Undercutting is when a groove forms at the edge of the weld. It's like if you're painting a wall and accidentally scrape off some paint along the edge of where you're working.
This groove weakens the weld and the metal around it. Undercutting usually happens when the welding current is too high, or the welding speed is too fast. It can also occur if the welder holds the welding tool at the wrong angle. To prevent undercutting, welders need to use the right settings and move at the correct speed.
Cracks
Cracks in welds are serious problems. They're like cracks you might see in a dry riverbed—they can spread and cause big issues. There are two main types of cracks: hot cracks and cold cracks.
Hot cracks form when the weld is still very hot right after welding. They happen because different parts of the metal cool at different speeds. Cold cracks form after the weld has cooled down. They're often caused by stress in the metal or hydrogen trapped in the weld. Both types of cracks can make the weld fail. To prevent cracks, welders need to use the right materials and techniques, and sometimes, they need to heat or cool the metal slowly.
Slag Inclusions
Slag inclusions are bits of non-metal material trapped in the weld. It's like if you were making concrete and accidentally left some leaves or twigs in the mix.
Slag usually comes from the coating on welding rods or flux used in welding. If it gets trapped in the weld, it can weaken it. Slag inclusions often happen when the weld pool is too cold, or the welder doesn't properly clean between weld passes. To avoid this, welders must keep their work clean and use the right techniques to ensure the slag floats to the top of the weld, where it can be removed.
Spatter
Spatter is when tiny drops of molten metal fly out during welding and stick to the surrounding area. It's like when you're cooking and oil splatters out of the pan.
While spatter doesn't usually weaken the weld, it makes the work look messy and hard to clean up. It can also interfere with later work on the piece. Spatter is often caused by using too high a welding current or having the welding arc too long. To reduce spatter, welders can adjust their technique and use the right welding settings.
Overlap
Overlap happens when the weld metal flows onto the base metal without actually fusing with it. It's like if you're icing a cake, and some icing sits on top without sticking to it properly.
This creates a lip or overhang on the edge of the weld. Overlap is a problem because it can hide a lack of fusion underneath, making the weld weaker than it looks. It's often caused by insufficient heat, moving the welding tool too slowly, or holding it at the wrong angle. To prevent overlap, welders must use the right technique and ensure they're getting good fusion all along the weld.
Factors Affecting Weld Quality
Base Metal
The metal you're welding is super important. You need to pick the right type and thickness. Different metals weld differently. For example, steel is easier to weld than aluminium. The American Welding Society (AWS) says the metal's surface must be clean. Contaminants like oil, grease, or rust can hinder weld fusion and lead to weak joints. Thick metals need more heat than thin ones. If the metal is too thin, you might burn through it. You might only join it some of the way if it's too thick. Clean your metal with a wire brush or grinder before welding. This helps make a stronger weld.
Welding Process
The choice of welding process significantly influences the final weld characteristics. Common processes like Gas Metal Arc Welding (GMAW) and Shielded Metal Arc Welding (SMAW) offer distinct advantages and disadvantages. The AWS Welding Handbook says each has pros and cons. GMAW is faster and easier for beginners. It works well for thin metals. SMAW is good for outdoor welding and thick metals. It can handle rust and dirt better. The process you choose affects how the weld looks and how strong it is. Some processes work better for certain metals or jobs. Picking the right process is key to getting a good weld.
Welding Parameters
Travel Speed
How fast you move the welding tool matters a lot. The weld won't sink in deep enough if you go too fast. This makes a weak weld. You might put too much metal in one spot if you go too slow. This can cause the metal to warp. The AWS D1.1 Structural Welding Code says the right speed gives even penetration and a smooth bead. Practice helps you find the right speed for each job.
Heat Input
Heat input refers to the total heat deposited into the workpiece during welding. It's a function of travel speed, amperage, and voltage. A balanced heat input is crucial for achieving good weld penetration and solidification. Excessive heat can cause distortion, warping, and cracking, while insufficient heat can lead to incomplete fusion and weak welds.
Voltage and Amperage
Voltage and amperage control the power of your weld. Higher voltage makes a wider , flatter weld bead, and higher amperage makes the weld go deeper into the metal. The AWS Welding Handbook says to adjust these based on the metal thickness and type. Getting these right helps you make strong welds that look good.
Shielding Gas
Shielding gas protects the hot metal from the air. With it, the weld can become strong and full of holes. According to the American Welding Society (AWS), common shielding gases like argon or mixtures with carbon dioxide can significantly influence the weld characteristics. The AWS says different gases work for different metals. For example, argon is good for aluminium. A mix of argon and CO2 works well for steel. The right gas helps make clean, strong welds. A proper gas flow rate is also crucial. Insufficient flow can lead to weld porosity (gas pockets), while excessive flow can cause turbulence and affect weld quality.
Welding Technique
Travel Angle
The travel angle refers to the angle at which the welding torch is held relative to the joint. The AWS D1.1 code says a 10—to 15-degree angle works best for most welds. This angle helps the weld penetrate well and flow smoothly. If the angle is wrong, you might not join the metal properly. The right angle changes slightly for different welding positions, like overhead or vertical.
Electrode Manipulation (Stick Welding)
In stick welding, how you move the electrode matters. You can use straight, weave, or circular motions. Each creates a different weld bead. Weaving helps with thicker metals, spreading the heat more evenly. Straight beads work well for thin metals. The right motion helps control the weld pool and makes the weld stronger.
Wire Feed Control (GMAW)
Consistent wire feed speed is essential for uniform weld quality in GMAW. Erratic wire feeding can lead to variations in weld width and penetration. Modern welding machines often have features to control wire feed speed precisely.
Environmental Factors
While less prominent than the abovementioned factors, the surrounding environment can influence weld quality. For instance, welding in windy conditions can disrupt the shielding gas flow and contaminate the weld. Similarly, welding at very low temperatures can affect the arc stability and make it challenging to achieve proper fusion. Following recommended welding procedures for specific environmental conditions is crucial.
Impact of Bad Welds
Bad welds can cause big problems for structures. Let's look at how different weld mistakes can affect things:
Weld Strength: When a weld has problems like cracks, doesn't go deep enough, or has tiny holes, it becomes weaker. Think of it like a chain with a weak link. The weld might break under pressure or carry a heavy load, which could break parts of a machine or cause a building to fall.
Weld Integrity: Defects in welds can be like small cuts that get bigger over time. Cracks can start at these spots and grow larger. This can lead to leaks in pipes or tanks. In worst cases, it might cause a big failure, like a piece of equipment suddenly breaking apart.
Functionality of the Structure: A bad weld can prevent things from working properly . For example, if a weld on a water tank leaks, the tank can't hold water. Or if a weld on a bridge support is cracked, the bridge might not be safe to drive on.
Corrosion Resistance: Bad welds can also accelerate metal rust. Defects can create spots where water and air can get trapped, leading to rust. This is especially bad for boats or outdoor structures always exposed to the weather.
Aesthetic Impact: While not always a safety issue, bad welds can make things look ugly. This matters for products that need to look good, like furniture or car bodies. Messy welds with lots of spatter (little metal droplets) can be hard to clean up and paint over.
Long-term Reliability: Even if a bad weld doesn't fail immediately, it can cause problems over time. It might cause a machine to break down more often or need more repairs. This can cost a lot of money and time in the long run.
Bad welds can lead to dangerous situations, expensive fixes, or both. That's why it's so important for welders to do their job carefully and check welds thoroughly before using a structure or machine.
Best Practices for Achieving Good Welds
1. Proper Preparation
- Cleaning the base metal: Cleaning the metal before welding is crucial. This means removing surface dirt, rust, paint, or oil. It's like washing your hands before cooking - you want a clean start. Dirty metal can cause problems in the weld, like weakness or holes. Welders often use wire brushes, grinders, or special cleaning chemicals to ensure the metal is spotless.
- Joint fit-up: Joint fit-up means making sure the pieces of metal fit together correctly before welding. Imagine putting together a puzzle - the pieces need to line up right. If gaps or the edges don't match, the weld might not be strong . Welders use tools to measure and adjust the fit. Sometimes, they use clamps or tack welds (small, temporary welds) to hold things in place.
2. Welding Parameters
Choosing the right welding settings is like picking the right temperature to cook food. You need the right amount of heat and the correct speed. This includes setting the welding current, voltage, and speed. The right settings depend on the type and thickness of the metal and the kind of weld you're making. Using the wrong settings can lead to weak welds or defects.
3. Welding Techniques
Good welding technique is about how the welder moves the welding tool. It's like painting - you need smooth, steady movements. This includes holding the welding tool at the right angle and moving at the right speed. The welder must also watch the weld puddle (the melted metal) and adjust as needed. Good technique comes with practice and helps prevent many common welding problems.
4. Proper Welding Equipment
Keeping welding equipment in good shape is important . It's like taking care of your car - regular maintenance helps prevent breakdowns. This means cleaning the welding machine, checking for worn parts, and replacing cables or tips when needed. Well-maintained equipment works better and helps produce better welds.
5. Following Welding Procedures and Specifications
Welding procedures are like recipes for welders. They tell the welder exactly how to make a good weld for a specific job. These procedures include details about the metal type, welding method, settings to use, and how to prepare the metal. Following these procedures helps ensure that welds are consistent and meet the required standards.
6. Continuous Training and Skill Development
Welding is a skill that gets better with practice and learning. Even experienced welders must keep learning about new techniques and equipment, like a chef learning new recipes or cooking methods. Welders often attend training courses or practice new skills in their free time. Continuous learning helps welders stay up-to-date and improve the quality of their work.
Most Effective Weld Inspection Methods
Visual Inspection
Visual inspection is the first and most common way to check welds. It's like giving the weld a careful look-over. Welders and inspectors use their eyes, sometimes with the help of magnifying glasses or special lights, to check for obvious problems. They look for cracks, uneven surfaces, or signs of poor fusion. This method is quick and doesn't need special equipment, but it can only find problems on the surface of the weld.
Non-destructive Testing (NDT) Methods
NDT methods check welds without damaging them. It's like checking if a watermelon is ripe without cutting it open. There are several types of NDT:
1. Radiographic testing:
This method uses X-rays or gamma rays to look inside the weld. It's like taking an X-ray at the doctor's office. The rays pass through the metal, creating an image on film or a digital detector. This image shows hidden defects inside the weld, like cracks or porosity (tiny holes).
2. Ultrasonic testing:
Ultrasonic testing uses high-frequency sound waves to find defects. It's similar to how dolphins use sound to navigate. The inspector moves a device over the weld that sends sound waves into the metal. If there's a defect, the sound waves bounce back differently. This method is good for finding internal flaws and measuring their depth.
3. Magnetic particle testing:
This method works on magnetized materials, like steel. The inspector applies a magnetic field to the weld area and then sprinkles tiny magnetic particles. If there are any cracks or defects on or near the surface, the particles gather around them, making them visible. It's like using iron filings to see the shape of a magnetic field.
4. Dye penetrant testing:
This method finds surface cracks that might be too small to see with your eyes alone. The inspector applies a coloured liquid to the weld, seeping into tiny cracks. After cleaning off the excess, a developer is applied , which draws out the dye from the cracks, making them visible. It's similar to how a paper towel soaks up a spill, drawing the liquid to the surface.
Destructive Testing Methods
Destructive tests involve breaking or damaging sample welds to check their strength and quality. It's like testing how strong a rope is by seeing how much weight it can hold before breaking. These tests are usually done on test pieces, not the welded structure.
1. Bend test:
In this test, a sample of the welded material is bent to see if it cracks. It checks how flexible and strong the weld is. If the weld is good, it should bend without breaking or cracking.
2. Tensile test:
This test pulls the welded sample apart to measure its strength. It measures the force needed to break the weld. A good weld should be as strong as or stronger than the base metal.
3. Impact test:
This test checks how well the weld can resist sudden force. It's like testing how well a phone case protects a phone when it's dropped. A machine hits the weld sample with a swinging weight, and the energy absorbed is measured. This helps predict how the weld might behave in harsh conditions or under sudden stress.
These testing methods help ensure that welds are strong, safe, and defects-free. By combining these techniques, inspectors can be confident about the quality of welds.
Need Quality Weld? Essential Questions to Ask Your Welder
Choosing the right welder for your project is crucial. A skilled welder with the proper knowledge and experience can produce high-quality welds that are strong, safe, and meet your specific needs. Here are some key questions to ask your welder to ensure a successful outcome:
Experience and Qualifications
- Do you have experience welding similar projects? Knowing your welder's experience with projects like yours is essential.
- Are you certified by a recognized welding organization like the American Welding Society (AWS)? Certification demonstrates the welder's skills and knowledge of welding codes and procedures.
- What welding processes are you proficient in? Ensure the welder is comfortable with the specific welding process required for your project (e.g., GMAW, SMAW).
Understanding the Project
- Have you reviewed the project specifications and welding procedures (WPs)? A thorough understanding of the project requirements is vital for the welder to achieve the desired results.
- Do you have any questions or concerns about the project? Open communication helps identify potential issues and ensure everyone is on the same page.
Welding Approach and Materials
- What welding parameters (travel speed, voltage, amperage) do you plan to use? The chosen parameters significantly impact the weld quality.
- What type of filler metal will be used? The filler metal should be compatible with the base metal for optimal weld strength.
- What inspection methods will be used to ensure weld quality? Discuss the types of inspections planned (visual, NDT) to verify the weld meets specifications.
Project Timeline and Costs
- What is your estimated timeline for completing the welding portion of the project? Having a clear timeframe helps with overall project planning.
- What is your hourly rate or project cost estimate? Get a clear understanding of the associated welding costs.
By asking these questions, you can gain valuable insights into your welder's qualifications, approach to the project, and commitment to quality.
Takeaway
Good weld quality is crucial for the safety and reliability of structures and products. A good weld is strong, properly fused, and free from defects like cracks, porosity, or incomplete penetration. It has a consistent appearance and is the right size for the job. Bad welds, on the other hand, can lead to weak structures, leaks, or even catastrophic failures. That's why it's important to understand the characteristics of good welds and the common defects to avoid.
