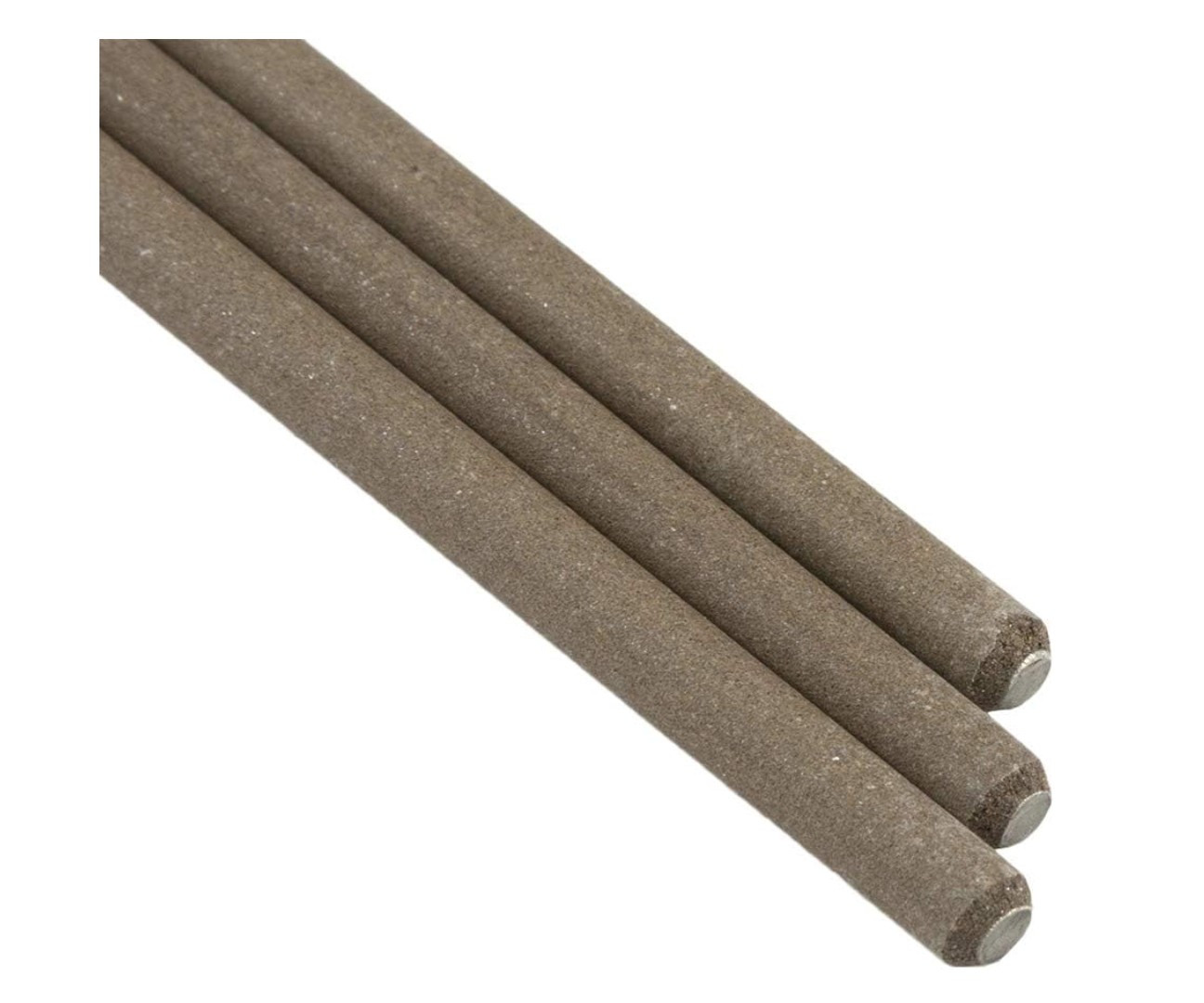

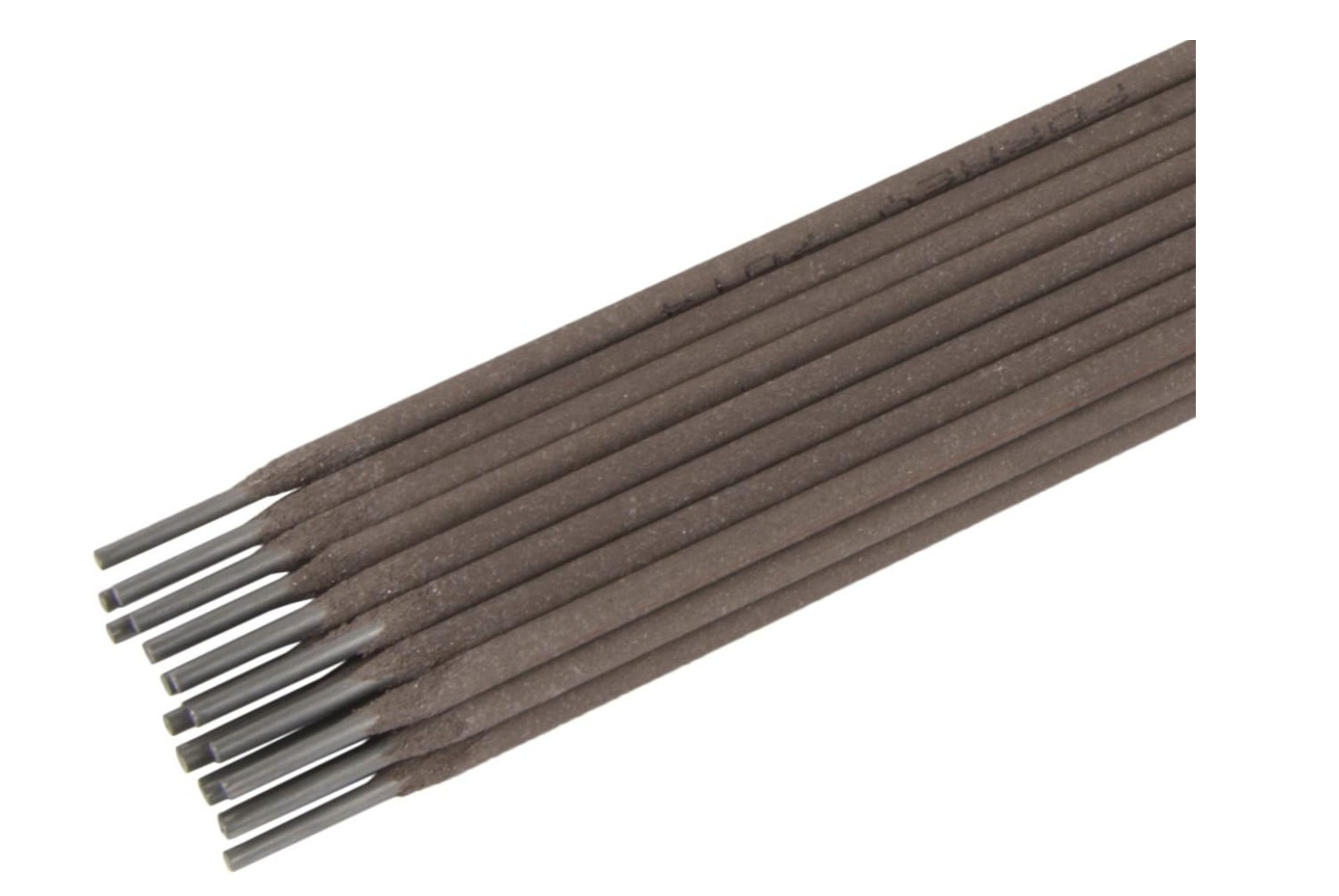

What is 7014 Welding Rod?
The 7014 welding rod is a covered electrode used primarily for stick welding. It is classified as a low-hydrogen, mild steel electrode suitable for welding various carbon and low-alloy steels.
The "70" in the 7014 designation refers to the minimum tensile strength of the weld deposit, which is 70,000 pounds per square inch (psi). The "1" indicates that the electrode is designed for all welding positions, including flat, horizontal, vertical, and overhead. The "4" signifies that the rod has a medium-thickness flux coating, which provides a stable arc, smooth bead appearance, and moderate weld penetration.
7014 electrode comprises a metal core wire surrounded by a flux coating. When an electric arc is struck between the 7014 rod and the workpiece, the flux coating melts and releases shielding gases that protect the weld pool from atmospheric contamination.
Composition and Properties of 7014 Welding Rod
Chemical Composition
Primary Alloying Elements
The metal core of the 7014 welding rod contains primary alloying elements like iron, manganese, and silicon. These elements are intentionally added to the steel when welded to improve its strength and performance. The iron provides the base metal, while the manganese and silicon enhance the weld's mechanical properties, such as tensile strength and impact resistance.
Flux Components
The flux coating surrounding the metal core of the 7014 rods also contains various components. These flux ingredients serve an essential purpose - they help protect the weld pool from impurities in the air during the welding process. The flux also creates a stable, smooth-burning arc, which is crucial for achieving high-quality welds.
Physical Properties
Diameter and Length Variations
7014 welding rods come in a variety of diameters and lengths. This wide range of sizes allows welders to choose the right rod for their specific welding application. The diameter of the rod affects the amount of filler metal deposited, while the length determines how long the rod can be used before needing replacement. Having access to different diameter and length options gives welders greater flexibility to match the rod size to the project requirements.
Tensile Strength and Hardness
The tensile strength and hardness of the weld deposit are important physical properties of the 7014 welding rod. These factors determine the overall strength and durability of the completed weld. A higher tensile strength means the weld can withstand greater amounts of stress and force before failing. The hardness of the weld metal also affects its resistance to wear and deformation. Welders consider these properties when selecting the appropriate 7014 rods for their application.
Electrical Conductivity
The electrical conductivity of the 7014 welding rod is a crucial physical property. It allows the electric current to flow smoothly and consistently during welding. Good electrical conductivity ensures a stable arc is maintained, essential for producing high-quality welds. If the rod's conductivity is poor, it can lead to an unsteady arc, inconsistent weld penetration, and other defects.
Melting Point and Arc Characteristics
The melting point and arc characteristics of the 7014 welding rod are also significant physical properties. The melting point determines how easily the rod will melt and deposit filler metal into the weld pool. The arc characteristics, such as stability and heat input, affect the overall weld profile and appearance. Welders carefully consider these factors when selecting 7014 rods for their specific welding application.
Advantages and Limitations of 7014 Welding Rod
Advantages
Versatile Welding Positions: 7014 welding rods can make high-quality welds in various positions, including flat, horizontal, vertical, and overhead. This versatility allows for greater flexibility on the job site.
Smooth and Stable Arc: The welding arc produced by 7014 rods is smooth and stable. This results in welds with a clean, uniform appearance.
Moderate Penetration: The penetration depth of 7014 welds is moderate. It makes welds well-suited for joining thicker materials without excessive base metal melting.
Improved Weld Toughness: The chemical composition of 7014 rods contributes to increased toughness and impact resistance in the weld deposit compared to some other electrode types.
Limitations
Limited to Mild Steel: 7014 welding rods are primarily designed for use on carbon and low-alloy steels. They may not be suitable for welding higher alloy or stainless steel materials.
Moderate Weld Strength: While the 7014 weld deposit has adequate strength for many applications, it may not be the best choice for projects requiring exceptionally high-strength welds.
Potential for Slag Inclusions: Improper welding techniques or poor joint preparation can lead to the formation of slag inclusions in the 7014 weld, which can compromise its quality and integrity.
Applications and Industries
Structural Steel Fabrication
7014 welding rods are widely used in structural steel fabrication. Their versatility in welding positions makes them suitable for joining thick steel members. The rod's moderate penetration is well-suited for construction projects. The toughness of 7014 welds helps ensure the structural integrity of critical components. These rods are commonly used in building construction and heavy equipment manufacturing.
Shipbuilding and Marine Applications
The marine industry frequently uses 7014 welding rods. Their ability to weld in all positions helps construct and maintain complex ship structures. The moderate weld penetration and improved toughness help withstand demanding marine environments. 7014 rods are famous for shipbuilding and repair work.
Automotive and Transportation
7014 welding rods are commonly used in automotive and transportation industries. Their versatility in welding positions allows for efficient assembly and repair work. The smooth, uniform weld appearance is important for aesthetic considerations in these applications. These rods are used for manufacturing and repairing vehicles, trailers, and other components.
Pipework and Pressure Vessel Fabrication
The moderate penetration and toughness of 7014 welding rods make them suitable for pipework and pressure vessel fabrication. These industries require welds that can withstand high pressure and stress without compromising the system's integrity. 7014 rods are used to fabricate and repair these critical components.
Maintenance and Repair Work
7014 welding rods are often used in maintenance and repair work across various industries. Their versatility in welding positions and ability to produce high-quality welds make them valuable for on-site repairs. These rods maintain and repair equipment, machinery, and infrastructure in many applications.
Comparison with Other Welding Rods
6013 vs. 7014 Welding Rods
6013 welding rods are designed for use in flat and horizontal positions. 7014 welding rods, on the other hand, can be used in all welding positions, including vertical and overhead. This makes 7014 rods more versatile for a broader range of applications.
The 7014 welding rod generally provides a better weld bead appearance and a more stable arc than the 6013 rods. The 7014's moderate penetration is also better suited for thicker materials than the 6013's shallow penetration. However, 6013 rods may be more cost-effective for certain projects where all-position welding is not required.
7014 vs. 7018 Welding Rods
7018 welding rods are classified as low-hydrogen, high-strength electrodes. 7014 welding rods are considered medium-strength, general-purpose electrodes.
The 7018 rod typically produces welds with higher tensile strength and better impact resistance than the 7014. This makes 7018 a better choice for applications requiring exceptional weld strength, such as heavy machinery or structural steel fabrication.
On the other hand, 7014 rods are more versatile in terms of welding positions. They often provide a smoother, more aesthetically pleasing weld bead. The 7014's moderate penetration makes it better suited for joining thicker materials without excessive base metal melting.
Frequently Asked Questions (FAQs)
Can 7014 welding rods be used on stainless steel?
No, 7014 welding rods are primarily designed for use on carbon and low-alloy steels. They are not recommended for welding stainless steel or other high-alloy materials. For those applications, you must select a different type of welding electrode formulated explicitly for the base metal.
How do you store 7014 welding rods properly?
Proper storage of 7014 welding rods is important to maintain their quality and performance. The rods should be kept in a dry, low-humidity environment, and any opened packages should be tightly sealed when not in use. Prolonged exposure to moisture can cause the flux coating to deteriorate, negatively affecting the welding arc and weld quality.
What is the purpose of the flux coating on 7014 welding rods?
The flux coating on 7014 welding rods serves several vital functions. It helps shield the weld pool from atmospheric contamination, producing a cleaner, higher-quality weld. The flux also creates a stable, smooth-burning arc, enhancing the finished weld's overall welding performance and appearance.
Can 7014 welding rods be used for out-of-position welding?
Yes, one of the key advantages of 7014 welding rods is their ability to be used for out-of-position welding, such as in the vertical or overhead positions. The flux-cored design of the 7014 rods allows for consistent arc performance and weld quality, even when welding in challenging positions.
How do I determine the correct welding parameters for 7014 rods?
The optimal welding parameters for 7014 rods, such as amperage, voltage, and travel speed, will depend on factors like the rod diameter, base metal thickness, and joint configuration. It's essential to refer to the manufacturer's recommendations or consult with an experienced welder to ensure you are using the appropriate settings for your specific application.
Conclusion
7014 welding rods are versatile and widely used electrodes for fabrication, repair, and maintenance applications. Their ability to be used in all welding positions, smooth arc, and moderate weld penetration make them a popular choice across many industries.
As welding technology continues to evolve, we may see further improvements in the composition and performance of 7014 welding rods. Advancements in flux formulations and core wire materials could enhance arc stability, weld appearance, and mechanical properties. Staying informed about the latest 7014 welding rod technology developments will help welders optimize their processes and deliver superior results.
